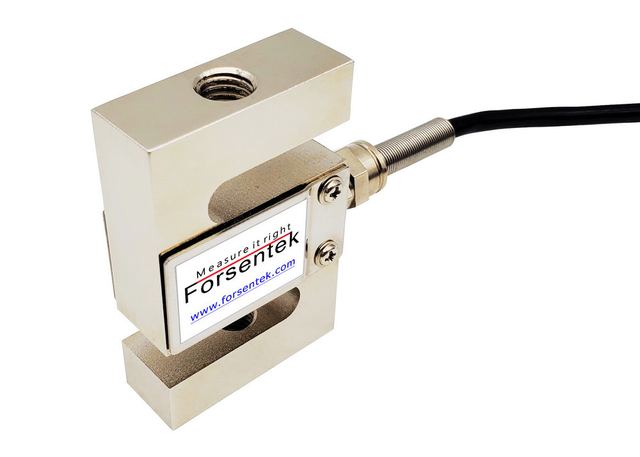

S-beam tension compression load cell 5kg 10kg 20kg 50kg 100kg 200kg
Model FS6A/FS6B
Overview
S-beam tension compression load cell 5kg 10kg 20kg 50kg 100kg 200kg supplied by Forsentek Co. Limited. Key published specifications: Output Analog Sensor; Material Alloy Steel; Load Direction Tension And Compression; Capacity 5kg 10kg 20kg 30kg 50kg 100kg 200kg 300kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output | Analog Sensor |
|---|---|
| Material | Alloy Steel |
| Load Direction | Tension And Compression |
| Capacity | 5kg 10kg 20kg 30kg 50kg 100kg 200kg 300kg |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.05% R.O. |
| Hysteresis | ±0.05% R.O. |
| Nonrepeatability | ±0.03% R.O. |
| Creep(5min) | ±0.03% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.05% R.O./10 o C |
| Temperature shift span | ±0.05% R.O./10 o C |
| Input resistance | 385±50 ohms |
| Output resistance | 380±30 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.5*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Threaded Hole | M8/M12 |
