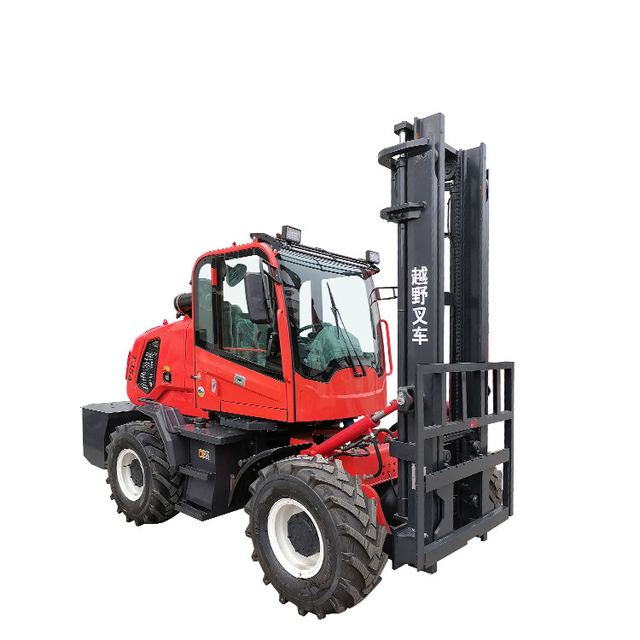

Rough Terrain Forklift Truck 3.5 Ton Short Axis Support EPA4, EuroV，Enclosed Cab
Overview
Rough Terrain Forklift Truck 3.5 Ton Short Axis Support EPA4, EuroV，Enclosed Cab supplied by Hunan Kamuja Machinery & Equipment Co.,Ltd. Key published specifications: Type DIESEL ROUGH TERRAIN FORKLIFT; Max. Lifting Height 3~6m (optional Mast); Rated Loading Capacity 3.5t; Engine Opcions: China II, EPA4, EuroV. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | DIESEL ROUGH TERRAIN FORKLIFT |
|---|---|
| Max. Lifting Height | 3~6m (optional Mast) |
| Rated Loading Capacity | 3.5t |
| Engine | Opcions: China II, EPA4, EuroV |
| Model | T35A ( Short ) |
| Rated lifting load | 3500kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3200mm |
| Min.ground clearance | 350mm |
| Walking speed | 38km/h |
| Max.traction | 25KN |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Wheelbase | 1980mm |
| Mast Steel Width | 160mm |
| Fork length | 1220mm(optional) |
| Overall weight | 4200kg |
