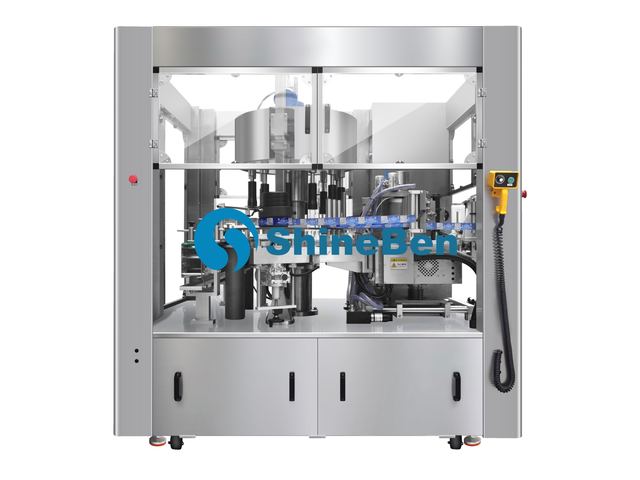

Rotary Hot Melt Glue Labeler LMR08HM

Model SBM-LMR08HM

Rotary Hot Melt Glue Labeler LMR08HM

Overview

Rotary Hot Melt Glue Labeler LMR08HM, from Shineben Machinery Co., Ltd in Guangzhou, Guangdong. Published figures include dispensing accuracy ±1mm, labeling accuracy ±1mm and maximum label length 500mm.

Technical specifications

Labeling Speed30,000 bottles/min (Related to product and label size)
Dispensing Accuracy±1mm
Labeling Accuracy±1mm
Label Width15-200mm (Standard width, adjustable for actual product dimensions)
Maximum Label Length500mm
Bottle Height70-320mm (Adjustable for actual product dimensions)
Applicable Inner Diameter of Label Roll152mm
Maximum Outer Diameter of Label RollΦ600mm
Power SupplyThree-phase 380V 50Hz , 11KW
Gluing Temperature120-160°C
Compressed Air8 (kg/cm²)
Unwinding StationSingle station, constant tension unwinding
Machine dimension(L×W×H)approx. 2000 × 1400 × 2300mm
Machine Weightapprox. 1500KG
