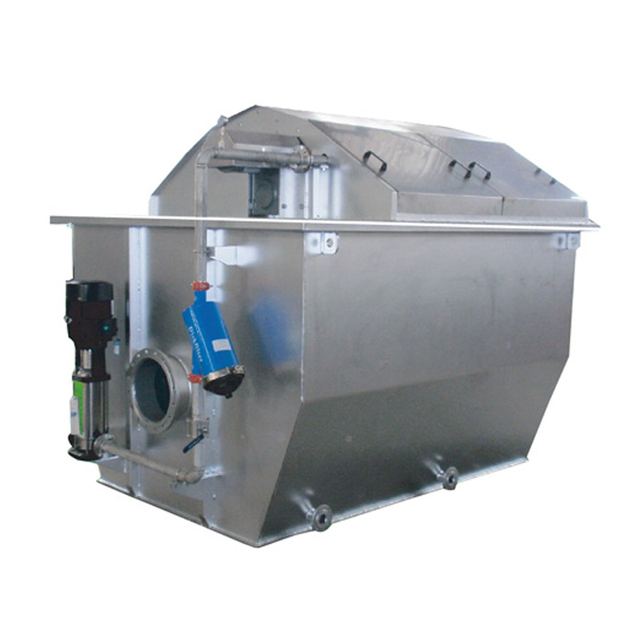

Rotary Drum Screen Filter Aquaculture System Filtration Equipment 2000mm Rotary Disk Filter
Overview
Rotary Drum Screen Filter Aquaculture System Filtration Equipment 2000mm Rotary Disk Filter supplied by Jiangsu Ponis Environmental Technologies Co., Ltd. Key published specifications: Certification CE,UL; Outlet Water Quality SS≤10mg/L; Filtration Rate 8-15m/h/m2; Filter Disc Material Reinforced Engineering Plastic. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE,UL |
|---|---|
| Outlet Water Quality | SS≤10mg/L |
| Filtration Rate | 8-15m/h/m2 |
| Filter Disc Material | Reinforced Engineering Plastic |
| Filter Cloth Material | Stainless Steel, PE Polyester |
| Processing flow | 28~35m³/h (single disk) |
| Filter plate diameter | 2000mm |
| Filtration area | 4.5m²/single disc |
| Influent water quality | SS≤30mg/L |
| Body material | Stainless steel |
| Excellent treatment efficiency | 10 micron filter cloth intercepts particles |
| Cleaning pressure | 6-8 bar |
| Backwash pump power | 5-11KW |
| Head loss | 50-200mm |
| Backwash drive power | 1.5KW |
