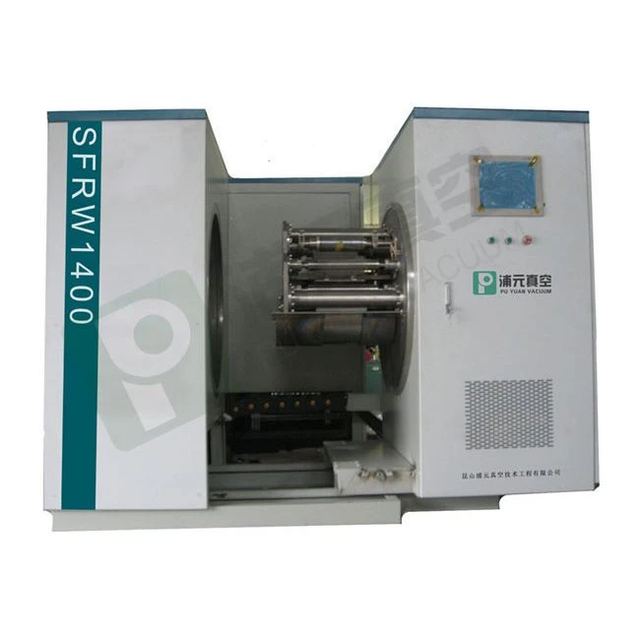

Roll-to-roll Coating Machine
Overview
Roll-to-roll Coating Machine supplied by Kunshan Puyuan Vacuum Technology Engineering Co.,Ltd. Key published specifications: Maximum coating width 280mm; The maximum speed of mechanical transport 5m/min; The speed accuracy ±0.1m/min; Coating speed >5m/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Maximum coating width | 280mm |
|---|---|
| The maximum speed of mechanical transport | 5m/min |
| The speed accuracy | ±0.1m/min |
| Coating speed | >5m/min |
| Suitable for slurry viscosity | 1500~15000 Cps |
| The inner diameter of the core | Adopts a 3-inch shaft |
| Power | 6 (KW) |
| Coating method | Continuous coating |
| Can be moved | With 4 universal wheels |
| Double-sided accuracy of dry thickness | <±0.004mm |
| Accuracy of single-sided dry thickness | <±0.002mm |
| Average length error | ≤±0.5mm |
