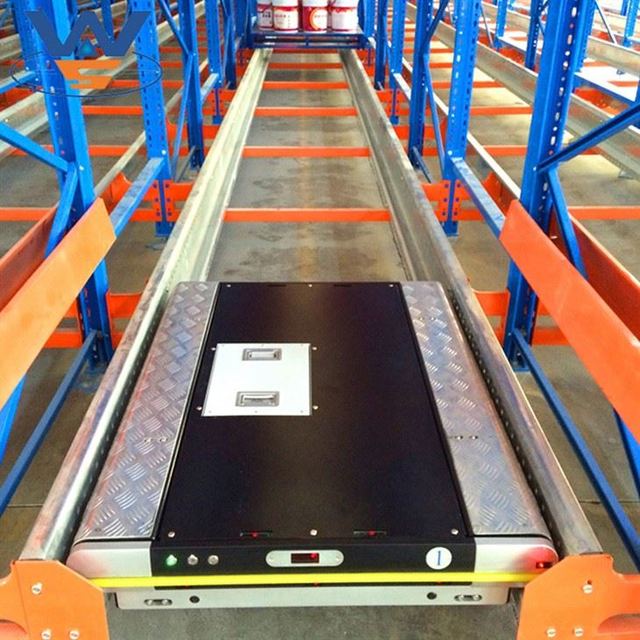

Radio Shuttle Racking
Overview
Radio Shuttle Racking supplied by Nanjing Victory Storage Equipment Manufacturing Co., Ltd. Key published specifications: Dimension Width:Customized Depth: Customized Height:Customized; Box Beam 80x50, 100x50, 120x50, 130x50, 140x50, 160x50mm thickness 1.5-2.0mm; Upright 80x60, 90x70, 100x70, 120x95mm thickness: 1.8-3.0mm; Surface treatment Electrostatic powder coating surface. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Dimension | Width:Customized Depth: Customized Height:Customized |
|---|---|
| Box Beam | 80x50, 100x50, 120x50, 130x50, 140x50, 160x50mm thickness 1.5-2.0mm |
| Upright | 80x60, 90x70, 100x70, 120x95mm thickness: 1.8-3.0mm |
| Surface treatment | Electrostatic powder coating surface |
| Weight capacity | 500--5000kg |
| Lift height | 40mm |
| Move positioning:Laser | Germany P+F/SICK |
| Pallet positioning:Laser | Germany P+F/SICK |
| Lift control: approach switch | Germany P+F |
| Object detection | Germany P+F/SICK |
| Remote controller | Imported Tele-radio |
| Power supply | Lithium battery |
| Running time | ≥ 8h |
| Charging time | 3H |
| Battery lifetime | Charge times≤1000 |
| Noise | ≤60db |
| Painting | Frame (black) Others (grey) |
| Width | Customized |
| Height | Customized |
| thickness | 1.8-3.0mm |
| Lift control | approach switch |
