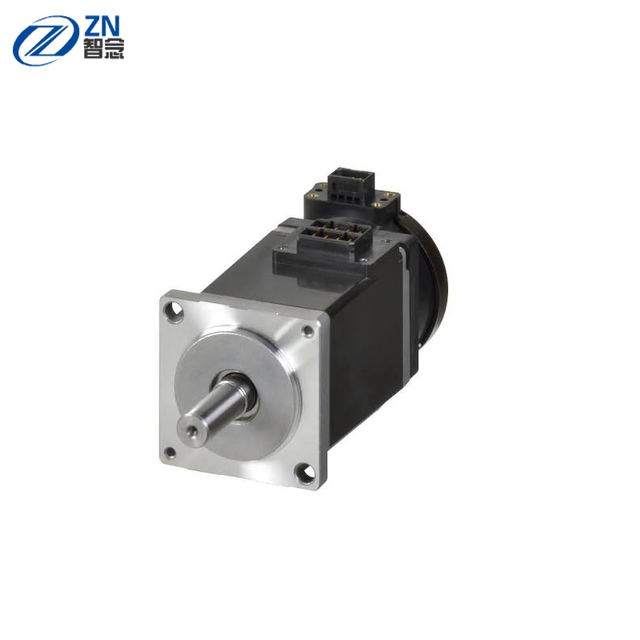

R88M-1M10030T-S2 AC Servo Motor 100W 230VAC Fast Delivery
Model R88M-1M10030T-S2
Overview
R88M-1M10030T-S2 AC Servo Motor 100W 230VAC Fast Delivery supplied by Changsha Zhinian Automation Equipment Co., Ltd. Listed under Plcs, Hmis & Industrial Controllers. Key published specifications: Servo control method EtherCAT; Drive supply voltage 230 V single phase; Rated output 0.1 kW; Rated speed 3000 r/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Servo control method | EtherCAT |
|---|---|
| Drive supply voltage | 230 V single phase |
| Rated output | 0.1 kW |
| Rated speed | 3000 r/min |
| Rated torque | 0.318 Nm |
| Peak torque | 1.11 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Flange size square (LC) | 40 mm |
| Shaft diameter | 8 mm |
| Shaft with key | yes |
| Shaft with tap | yes |
| Product Weight (unpacked) | 520 g |
| Type | Motor Unit |
