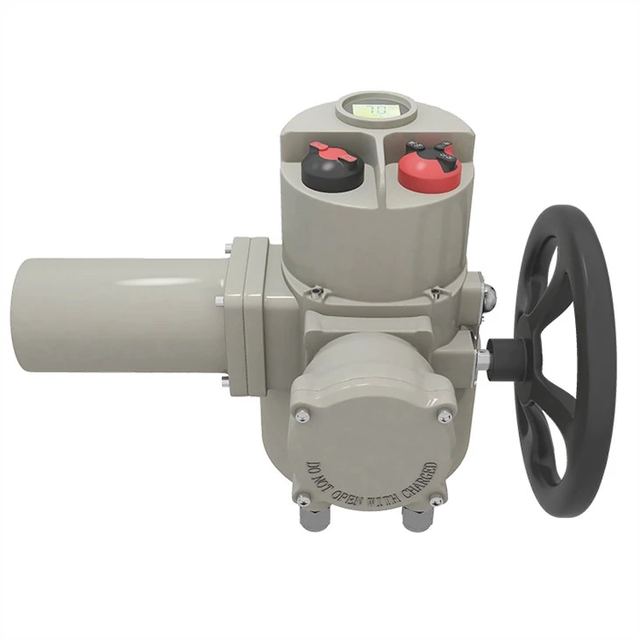

Quarter Turn Electric Motorized Actuator
Overview
Quarter Turn Electric Motorized Actuator supplied by Tianjin Freya Automation Technology Co.,Ltd. Listed under Valve Actuators. Key published specifications: Protection grade Standard IP65/IP67 Special IP68; Duty cycle(on-off) Short 10 minutes (special order 30 minutes); Duty cycle(modulating) Short 10 minutes (special order 30 minutes); Jam protection Build-in overheat protection. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Protection grade | Standard IP65/IP67 Special IP68 |
|---|---|
| Duty cycle(on-off) | Short 10 minutes (special order 30 minutes) |
| Duty cycle(modulating) | Short 10 minutes (special order 30 minutes) |
| Jam protection | Build-in overheat protection |
| Position indicator | Continuous mechanical indicator with arrow |
| Ambient temperature | Standard: -20～+60℃ Optional: -40～+80℃ |
| Ambient humidity | 90%RH max (Non-condensing) |
| Material | Aluminum alloy |
| Torque range | 50Nm to 5000Nm |
| Signal Control | 4-20mA, 1-5V, 0-10V DC |
| Standard | -20～+60℃ Optional: -40～+80℃ |
