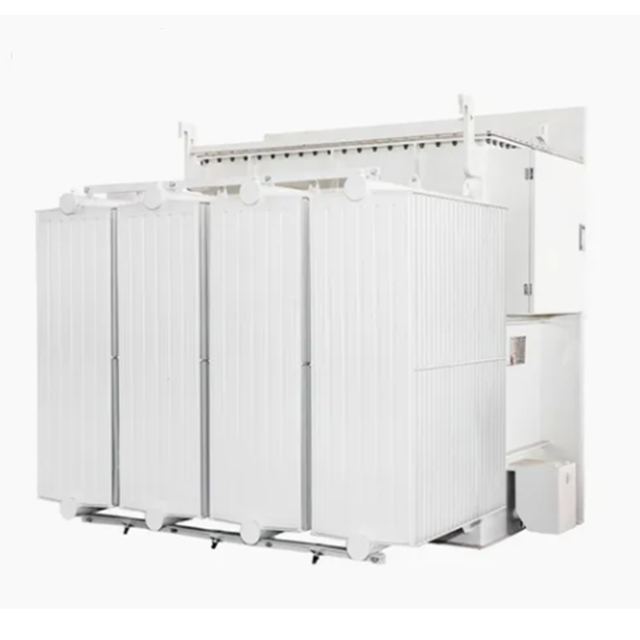

PV Combined Type Transformer
Model HKYBWG-3300kVA
Overview
PV Combined Type Transformer supplied by ZTELEC Yuguang ElectricTechnology(Henan)CO.,Ltd. Listed under Transformers. Key published specifications: Rated capacity 50kva-30mva; Rated Power 50kva-30mva; Rated Input Voltage 800V 660V and 400V; Rated Output Voltage Up to 40.5kv. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated capacity | 50kva-30mva |
|---|---|
| Rated Power | 50kva-30mva |
| Rated Input Voltage | 800V 660V and 400V |
| Rated Output Voltage | Up to 40.5kv |
| Frequency | 50 Hz,60Hz |
| Communication | RS485,Fiber optic ring network, Ethernet |
| S9 S11 S13 Oil type transformer | 50-31500KVA,6-33KV,50/60HZ,off load tape changer |
| SZ9 SZ11 oil type transformer | 50-31500KVA, 6-33KV,50/60HZ, On load tape changer |
| SCB9,SCB11 dry type transformer | F grade insulation, 50-3150KVA,6-33KV, 50/60HZ |
| SGB10 SGB11 11KV dry type transformer | H grade insulation |
