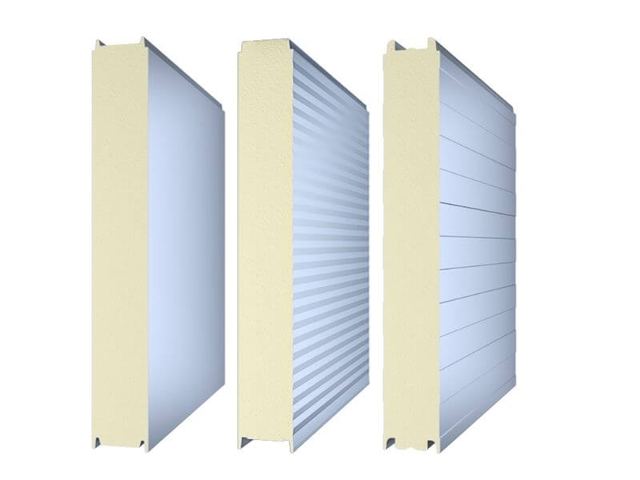

PU Sandwich Panel
Overview
PU Sandwich Panel supplied by SHANDONG COSA MATERIAL CO LTD. Key published specifications: Steel Sheet Thickness 0.4-0.7mm; Core Material Thickness 40mm 50mm 60mm 75mm 100mm 120mm 150mm 200mm; Density 40kg/m3; Effective Width Wall:400-1120mm Roof panel: 1000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Steel Sheet Thickness | 0.4-0.7mm |
|---|---|
| Core Material Thickness | 40mm 50mm 60mm 75mm 100mm 120mm 150mm 200mm |
| Density | 40kg/m3 |
| Effective Width | Wall:400-1120mm Roof panel: 1000mm |
| Thermal Conductivity | 0.019-0.023w/m.k |
| Moisture Permeability Coefficient | ≤3.34Ng/Pa/m.s |
| Water Absorption | ≤0.5g/100cm2 |
| The Compression Strength | ≥220KPa |
| The Bending Strength | ≥2450KN/m2 |
| Fireproof Grade | B1 B2 |
