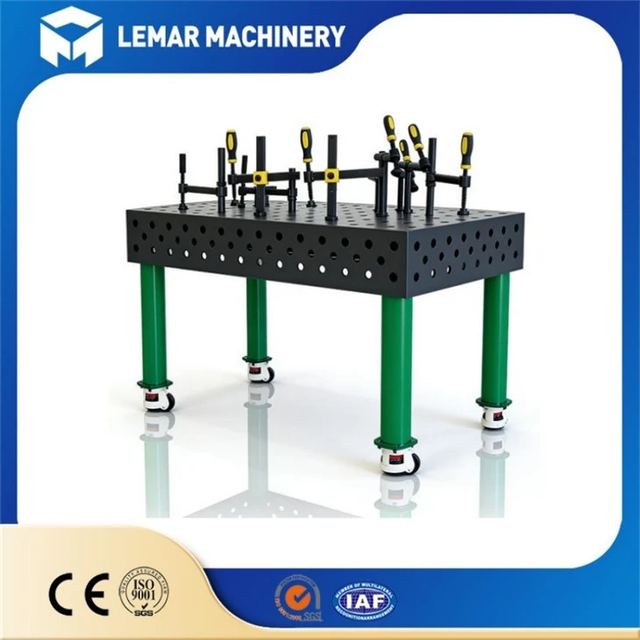

Pro Welding Table
Model Pro-WT-1500×1000
Overview
Pro Welding Table supplied by Wuxi Lemar Metal Products Co.,Ltd. Key published specifications: Working Height 850mm (adjustable ±50mm); Tabletop Thickness 30mm; Hole Diameter D28mm / D16mm; Hole Grid 100mm × 100mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working Height | 850mm (adjustable ±50mm) |
|---|---|
| Tabletop Thickness | 30mm |
| Hole Diameter | D28mm / D16mm |
| Hole Grid | 100mm × 100mm |
| Flatness Tolerance | ±0.1mm/m |
| Material | Q355 / HT300 Cast Iron |
| Surface Treatment | Nitriding |
| Surface Hardness | HV 600+ |
| Load Capacity | 5,000 kg |
| Net Weight | ~650 kg |
| Certification | CE Passed |
| Application | Welding&Assemble |
| Type | 3D |
| Size | 1200*2400mm |
| Grid hole spacing | 100mm × 100mm (metric) with ±0.05mm positional accuracy |
