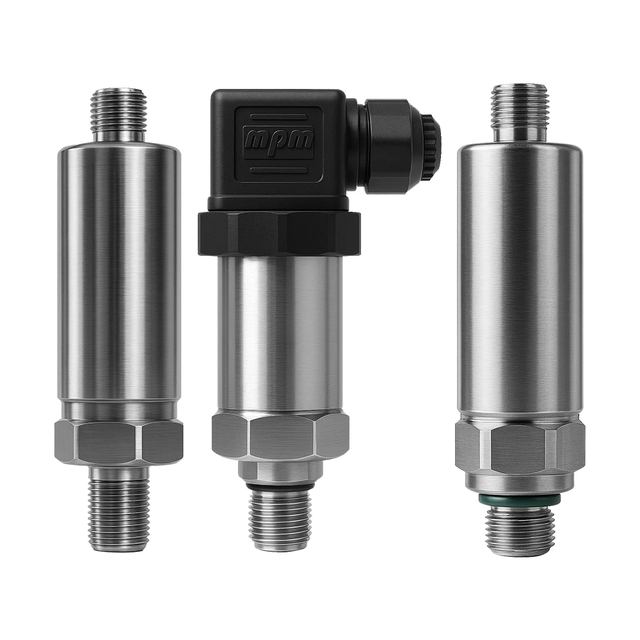

Pressure Sensor
Overview
Pressure Sensor, listed under Pressure Sensors by Hongnuo (shenyang) General Machinery Co., Ltd in Shenyang, Liaoning. Published figures include pressure type Gauge;Absolute;Negative pressure, output signal 4mA～20mADC 1V-5VDC RS485 and protocol MODBUS RTU, HART.
Technical specifications
| Pressure Range | 0-0.04Bar...0.2Bar...0.7Bar....1000Bar(optional) |
|---|---|
| Pressure Type | Gauge;Absolute;Negative pressure |
| Output Signal | 4mA～20mADC 1V-5VDC RS485 |
| Protocol | MODBUS RTU, HART |
| Power supply | 16V～28VDC (Recommend 24VDC ) |
| Accuracy | ≤ 0.25%,0.5%F.S |
| Overload pressure | 150% F.S (（≥600kpa 120%F.S.） |
| Burst Pressure | 200% F.S （≥600kpa 150%F.S.） |
| Stability | 0.2% F.S./year |
| Electrical Connection | Hirschmann,Aviation connectors, gland cable, IP68 diect cable |
| Process Connection | Thread M20*1.5,G1/2’’; G1/4’’, 1/4’‘NPT,1/2’‘NPT or Customization |
| Indicator | No Display(LCD,LED screen Optional) |
| Protection Level | IP65,IP67,IP68 |
| Service & Support | 12 months warranty |
