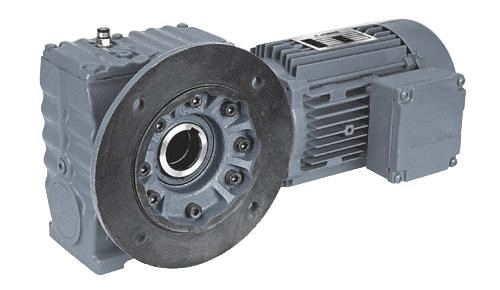

Precision Forward Reverse Two Stage Helical Gearbox Reducer Single Reduction
Overview
Precision Forward Reverse Two Stage Helical Gearbox Reducer Single Reduction, from Shanghai Fanbao Industrial Co., Ltd in Shanghai. Output torque 10-4890(N.M), input speed 1450rpm and output speed 0.12-397(rpm) are among the specifications published.
Technical specifications
| Output Torque | 10-4890(N.M) |
|---|---|
| Input Speed | 1450rpm |
| Output Speed | 0.12-397(rpm) |
| Efficiency | 94%~98%(depends on the transmission stage) |
| Mounting Position | Foot, flange, torque, arm, hollow/s |
| Gearing Arrangement | Worm |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62° |
| Gear core hardness | HRC33~40 |
| Input/Output shaft material | 42CrMo alloy steel |
| Input /Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Noise (MAX) | 60~68dB |
| Backlash | ≤20Arcmin |
