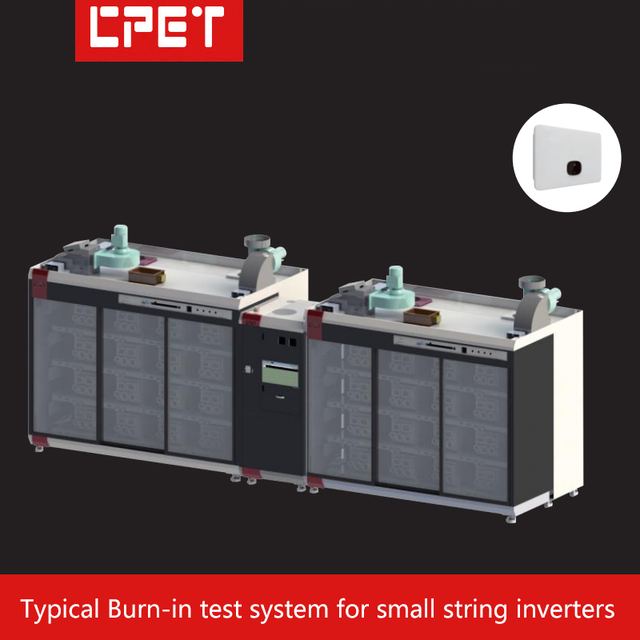

Power Supply Burn In Chamber
Overview
Power Supply Burn In Chamber, listed by Shenzhen CPET Electronics Co., Ltd in Shenzhen, Guangdong. Published figures include total input current 300A, total input power 160kW and burn-in bits/cabinet 9 Bits/cabinet.
Technical specifications
| Total Input Current | 300A |
|---|---|
| Total Input Power | 160kW |
| Burn-in Bits/cabinet | 9 Bits/cabinet |
| Burn-in Bits/layer | 3 Bits/layer |
| Overall size | 5100*1500*2050mm |
| Total input voltage | Three-phase five-wire system 220Vac (rated) |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Burn-in product power | 40kW/bit |
| Burn-in product input voltage | 200-1000Vdc/bit |
| Burn-in product input current | 100A/bit |
| Burn-in Product Load Category | 35kW/bit |
| Burn-in product output voltage | Three-phase five-wire |
| Burn-in product output current | 80A/bit |
| AC Connector Type | PA120 (L1/ L2/ L3/N/PE) |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/4 groups) |
| Signal Connector Type | RJ45 (network port) |
| Input power | 380kW |
| Feedback power | 315kW |
| Constant temperature range | Room temperature+5°C-60°C |
| Constant temperature accuracy | ±5°C |
| Open type | Sliding door/folding door/side door |
| Volume size | 2100*1500*2050mm |
| Dimensions in the product area | 1700*600*1500mm |
| Bit space size | 560*550*480mm |
| Minimum floor height | 300mm |
| Top floor height | 1320mm |
| Product area air duct direction | Left and right ventilation |
| Cooling method | Air cooling |
| Material | 1.5mm cold rolled sheet |
