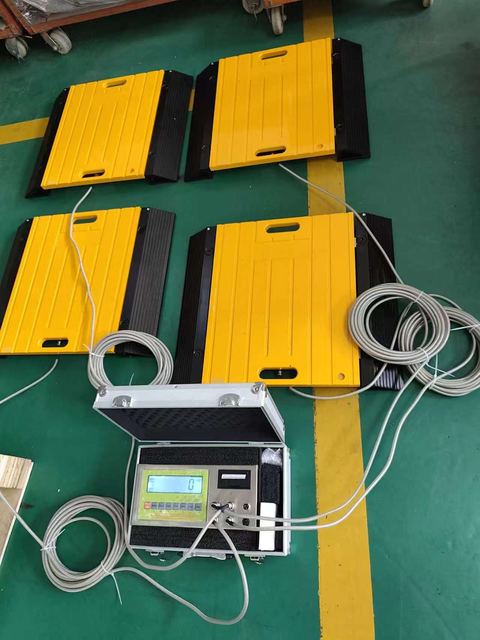

Portable Static Axle Load Weighing Device with Aluminum Alloy Body
Model AS002
Overview
Portable Static Axle Load Weighing Device with Aluminum Alloy Body supplied by Changzhou Skyerscale Co. Limited. Key published specifications: Rated load:1/2/3/5/6/10/20/30/40T Compensated temp.range(℃): -10~+50; Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC); Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80; Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 |
|---|---|
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| A/D conversion method | Σ-Δ 24bit |
| Input signal range | –19.5mV~19.5mV |
| Load cell excitation | DC 5V |
| Load cell connection mode | 4 wire |
| Operating temperature | -10 °C ~40 °C |
| Allowable working temperature | -40 ° C ~ 70 ° C |
| Wireless transmission frequency | 430MHz to 470MHz |
| Wireless transmission distance | 800 meters (In Open Place) |
| Power Supply | 110V~250V |
| Model | AS002(2pcs) Portable Wheel Scale |
| Material | Aluminum/Alloy Steel |
| Rated Load | 60 Ton |
| Capacity | 500/1000/1500Kg |
| Insulation resistance(MΩ) | ≥5000(100VDC) |
| Defend grade | IP66 |
