Overview

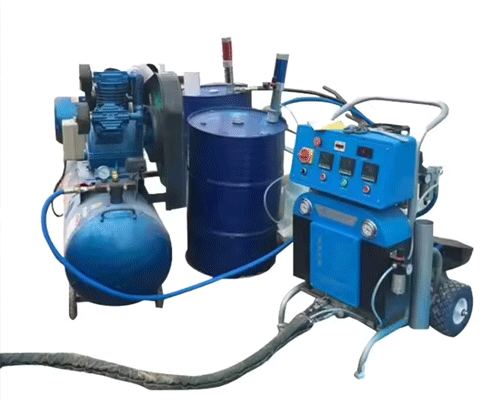

Polyurea Spray Machine for Industrial Waterproofing & Protective Coating supplied by YG Machinery Hub. Listed under Concrete Pumps. Key published specifications: Project YGMC-500 high configuration PU Machine; Proportion Fixed Mainframe 1 set; Self-cleaning spray gun 1 set; Gross weight 300KG. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Project	YGMC-500 high configuration PU Machine
Proportion Fixed Mainframe	1 set
Self-cleaning spray gun	1 set
Gross weight	300KG
Net weight	250KG
Feed pump	2 sets
Heated hose	49.2 ft (15 m)
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Max Working pressure	35MPa (350 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	24kg/min (42 lb/min)
Each heater power	6000W
Heating hose power	1000W / 15m
Total power	15000W
Voltage	230V 1-ph / 3-ph 220V/400V 3-ph
Machine size	870mm* 700mm* 1150mm
