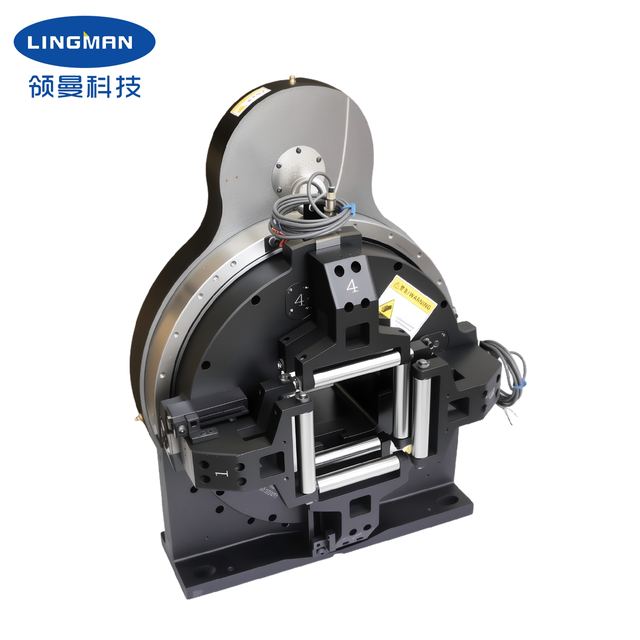

Pneumatic Laser Chuck with 6-130mm Clamping Range, Linear Proportional Force, and Cylinder Direct Output
Model F130DF
Overview
Pneumatic Laser Chuck with 6-130mm Clamping Range, Linear Proportional Force, and Cylinder Direct Output, listed by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Jaw stroke 124mm, maximunm clamping force 0.6KN and allowable pressure 0.4-0.9MPa are among the specifications published.
Technical specifications
| Jaw stroke | 124mm |
|---|---|
| Maximunm clamping force | 0.6KN |
| Allowable pressure | 0.4-0.9MPa |
| Maximum rotation diameter | 440mm |
| Clamping range | 6-130mm |
| Central height | 235mm |
| Rotational inertia | 1.42kg.m2 |
| Rotating part weight | 71kg |
| Whole unit weight | 134kg |
