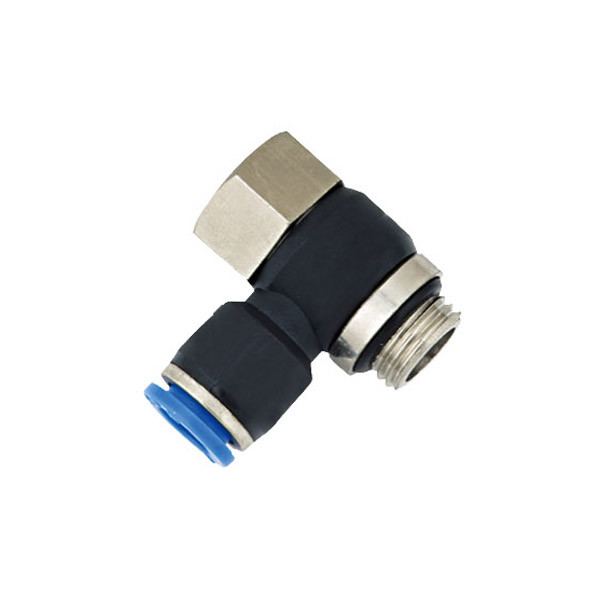

Pneumatic Air Fittings
Model PH-G
Overview
Pneumatic Air Fittings supplied by Prius pneumatic Company. Listed under Pneumatic Cylinders. Key published specifications: Fluid Type Air, Vacuum; Operating Pressure 0~10.2kgf/cm2(0~1.0MPa); Negative Pressure -750mmHg(10Torr); Max. Pressure 15.3kgf/cm2(1.5MPa). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Fluid Type | Air, Vacuum |
|---|---|
| Operating Pressure | 0~10.2kgf/cm2(0~1.0MPa) |
| Negative Pressure | -750mmHg(10Torr) |
| Max. Pressure | 15.3kgf/cm2(1.5MPa) |
| Tube Material | Nylon and Polyurethane |
| Material | Brass Nickel Plate+Plastic |
| Working Medium | Air,Vacuum |
| Pressure | 0~10.20Kgf/cm² |
| Port Size | M5~1/2" |
| Thread | G/NPT/R |
