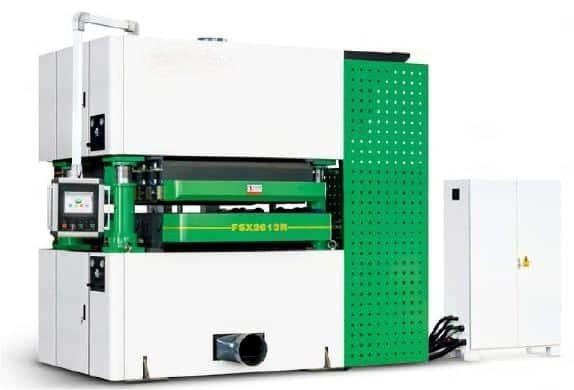

Plywood Double-Side Core Calibration Sander
Overview
Plywood Double-Side Core Calibration Sander supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Working width 40–1300 mm; Working thickness 3–120 mm; Working length ≥850 mm; Sanding belt speed 24 m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working width | 40–1300 mm |
|---|---|
| Working thickness | 3–120 mm |
| Working length | ≥850 mm |
| Sanding belt speed | 24 m/s |
| Feeding speed | 5–40 m/min |
| Sanding belt size | 1350 × 2850 mm |
| Diameter of contact roller | Ø400 mm steel roller × 2 |
| Total motor power | 160.5 kW |
| Main motor power | 75 kW × 2 |
| Motor power of feeding | 7.5 kW |
| Motor power of lifting | 1.5 kW |
| Motor power of brushing | 0.75 kW × 2 |
| Voltage requirement | 380V, 50Hz, 3 Phase |
| Working air pressure | 0.55 MPa |
| Speed of suction | 25–30 m/s |
| Volume of suction | 25,000 m³/h |
| Overall dimension | 2400 × 3200 × 3200 mm |
| Net weight | 14,500 kg |
| Main motor | HUALI |
| Contact roller bearing | NSK |
| Bearing with seat | FSB |
| Frequency converter | SIEMENS |
| Typical thickness | 12–30 mm |
