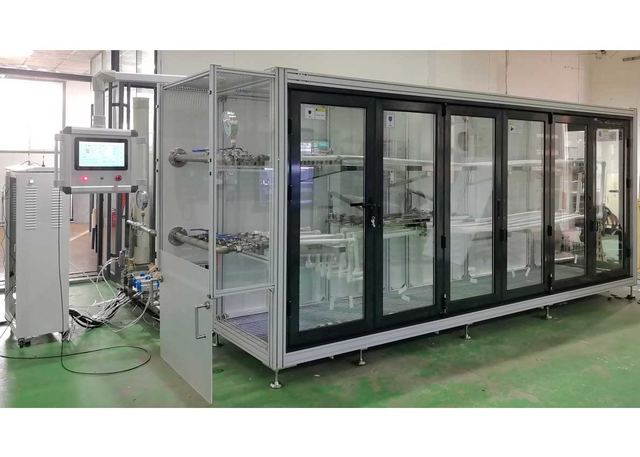

PLC-Controlled Pipeline Testing Equipment for Plastic Systems
Model CHW-63M
Overview
PLC-Controlled Pipeline Testing Equipment for Plastic Systems supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Number Of Cycles Any Number Of Times From 0 To 100,000; Velocity Of Flow >0.9m/s; Control Method Plc Control. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Number Of Cycles | Any Number Of Times From 0 To 100,000 |
| Velocity Of Flow | >0.9m/s |
| Control Method | Plc Control |
| Temperature Control Accuracy | Set Value ±0.5°c |
| Temperature Control Range | 20°c To Room Temperature (room Temperature> 20°c) |
| Display Mode | Touch Screen Display |
| Pressure Control Range | 0.40 MPa ~ 1.20 MPa |
| Control Accuracy | Set value ±0.02 MPa |
| Maximum Total Measured Cross-Sectional Area | 6200 mm² (2 × φ63); customizable |
| Circulation Time (Hot/Cold Water) | 600s to 1800s |
| Alternating Hot/Cold Water Time | ≤60s |
| Maximum Straight Pipe Section Length | 3700mm |
| Automatic Water Supply Pressure | >0.05 MPa |
| Cold Water Tank Temperature Range | 20°C to room temperature |
| Hot Water Tank Temperature Range | Room temperature to 95°C |
| Power Source | 380V AC, 50Hz, 25kW |
| Outline Dimensions | 5200 mm × 3200 mm × 2100 mm |
| Installation Dimensions | 6000 mm × 4000 mm × 3000 mm |
| Total Weight | 3210 kg |
| Component | Quantity |
| Industrial touchscreen computer | 1 unit |
| Cold water storage cistern | 1 unit |
| Hot water tank | 1 unit |
| Test chamber | 1 set |
| Preloading Device | 6 sets |
