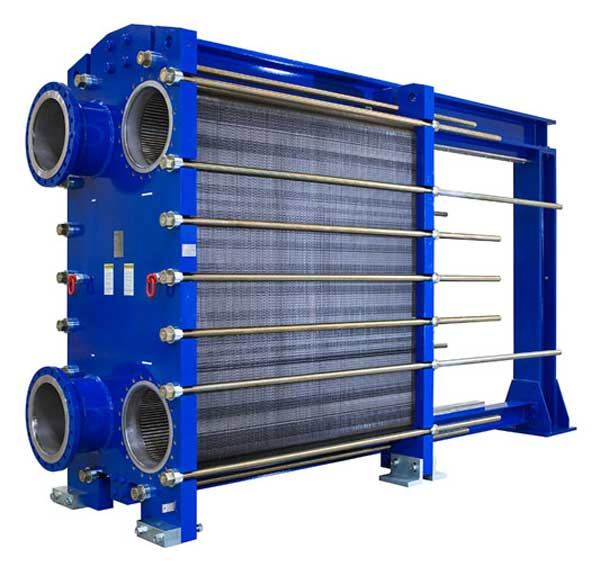

plate heat exchanger
Overview
plate heat exchanger supplied by Spring Sports Meeting Tianjin Anson International Co.,Ltd. Listed under Steel Plates. Key published specifications: Minimum Operating Pressure Vacuum; Minimum Operating Pressure（medium） 3.2MPa; Maximum Operating Pressure （water） 2.5MPa; Single Channel Volume 0.4L. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Minimum Operating Pressure | Vacuum |
|---|---|
| Minimum Operating Pressure（medium） | 3.2MPa |
| Maximum Operating Pressure （water） | 2.5MPa |
| Single Channel Volume | 0.4L |
| Maximum Flow | 105m³/h |
| Loop Combination | Single Circuit / Double Circuit |
| Maximum Capacity | m³/h |
| Operating Pressure | MPa |
| Angle Hole Diameter | mm |
| Flange Diameter | DN mm |
