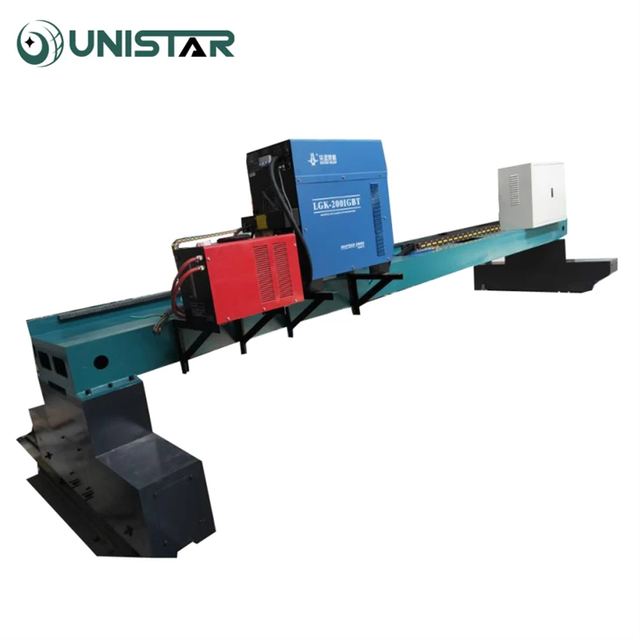

Plasma Cutting Machine
Model USP2060
Overview
Plasma Cutting Machine supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: Machine area (X) 2000mm; Machine area (Y) 6000mm; Working area 2000*6000mm; Machine power 8.5kw. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine area (X) | 2000mm |
|---|---|
| Machine area (Y) | 6000mm |
| Working area | 2000*6000mm |
| Machine power | 8.5kw |
| Transmission | X,Y High quality helical rack |
| Plasma Air Pressure | Max.0.8Mpa |
| Prevent dust system | Dust proof system |
| Oil system | Manual oil injection system |
| Max. cutting speed | 16000mm / min |
| Power cutting ability | 0.5-40mm |
| Working voltage | 380V / 60HZ / 50HZ |
| Spare parts | Electrode & Nozzle ( 5 sets free ) |
