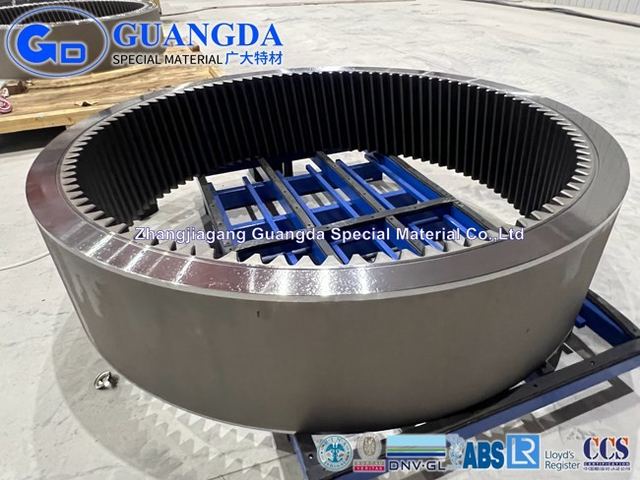

Planetary Ring Gear Large Internal Ring Gears Steel Gears
Overview
Planetary Ring Gear Large Internal Ring Gears Steel Gears supplied by Zhangjiagang Guangda Special Material Co., Ltd. Key published specifications: Max diameter 5000mm; Annular Capacity of the internal gears 10000pcs; Shaping Tooth grinding; Max O.D. 5000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max diameter | 5000mm |
|---|---|
| Annular Capacity of the internal gears | 10000pcs |
| Shaping | Tooth grinding |
| Max O.D. | 5000mm |
| Max Face Width | 2200mm |
| Max module | M35 |
| AGMA leval/DIN leval | DIN3962 CLASS 8 |
| Din3962 Class 8 | DIN3962 CLASS 4 |
| Tooth Surface finishing | Ra3.2 |
| Rail Vehicles | Oil and gas |
| Mining | Cement |
| Power Generation | Turbo |
| Hydro power | Wind Energy |
| Metallurgy | Sugar |
| Marine and shipbuiding | Machine tools |
| Recycling and processing plants | Rubber and plastics |
| Material | 18CrNiMo7-6,17CrNiMo6,42CrMo4 Etc |
| Diameter | Max 5000mm |
| Type | Forging |
