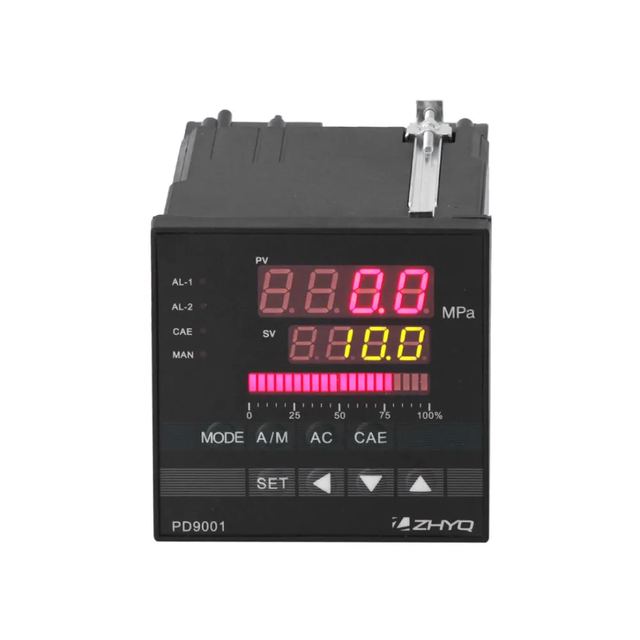

PID Intelligent Pressure Controller
Model PD9001
Overview
PID Intelligent Pressure Controller supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Electronic bar display 20 segments electronical bar indicate the output power; Display Range 0000 – 9999 (With decimal point); Accuracy 0.2%FS ±1bit; Pressure range Programmable settings. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Electronic bar display | 20 segments electronical bar indicate the output power |
|---|---|
| Display Range | 0000 – 9999 (With decimal point) |
| Accuracy | 0.2%FS ±1bit |
| Pressure range | Programmable settings |
| Sampling frequency | 50 times/s |
| Alarm output | Two relay outputs (programmable) |
| PID output | 4～20mA ; 0～5V ; 0～10V |
| Power supply | 85 – 265 VAC, 50Hz – 60Hz |
| Dimension | 96mm x 96mm x 100mm |
| Mounting hole size | 92mm x 92mm |
