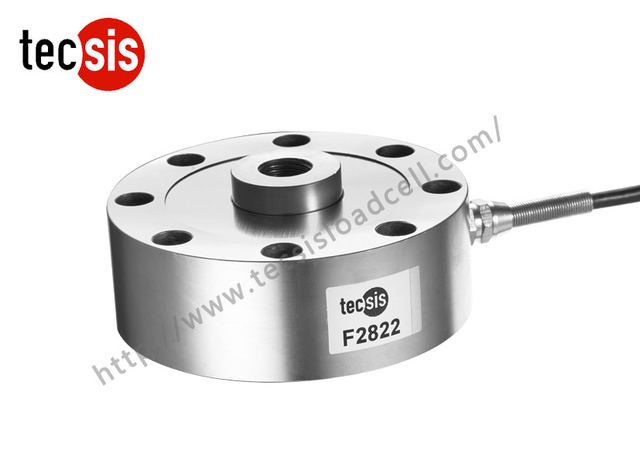

Pancake Truck Scale Tension Compression Load Cell of Alloy Steel
Model F2822
Overview
Pancake Truck Scale Tension Compression Load Cell of Alloy Steel supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Configuration Pancake Type; Material Alloy Steel; Capacity 0.5t~50t; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Configuration | Pancake Type |
|---|---|
| Material | Alloy Steel |
| Capacity | 0.5t~50t |
| Oem/Odm | Acceptable |
| Theory | Resistance Sensor |
| Protection Class | IP67 |
| Rated output | 2.0±1%mV/V |
| Zero balance | ±1% F.S. |
| Non-linearity | 0.05% F.S. |
| Hysteresis | 0.03% F.S. |
| Repeatability | 0.03% F.S. |
| Creep (30min) | 0.05% F.S. |
| Temp. effect on output | 0.03% F.S. / 10ºC |
| Temp. effect on zero | 0.03% F.S. / 10ºC |
| Insulation | ≥5000MΩ / 50VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~60ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5×5000 mm |
| Standard | carton |
| Model | F2822 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
