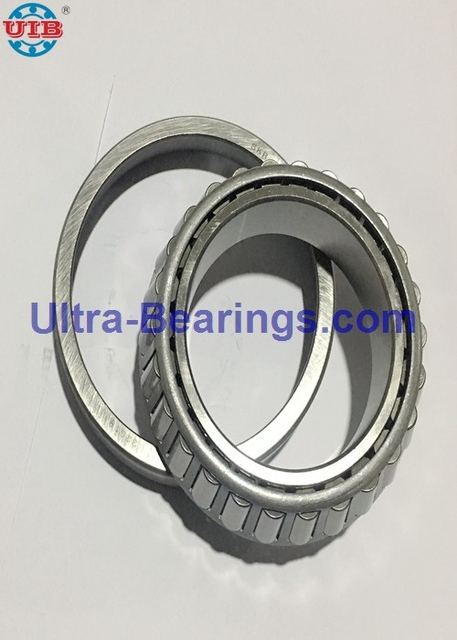

P5 P6 OEM Wheel Hub Unit Bearing With Hardness HRC60 HRC65 Taper Rollers
Overview
UIB (Xiamen) Bearing CO.,LTD in Xiamen, Fujian lists P5 P6 OEM Wheel Hub Unit Bearing With Hardness HRC60 HRC65 Taper Rollers under Bearing Wheel Type Rollers. Published figures include certification TS14909, applicant Auto Wheel Hub Bearing and grease lubricate speed 5000 (r/min).
Technical specifications
| Certification | TS14909 |
|---|---|
| Applicant | Auto Wheel Hub Bearing |
| Grease Lubricate Speed | 5000 (r/min) |
| Oil Lubricate Speed | 6300 (r/min) |
| Roller | Polished |
| Hardness | HRC60~ 65 |
| Bearing Grade | P6, P5 Grade |
| Bearing type | Taper roller bearing |
| Roller row | Single |
| cage material | Press steel |
| Ring material | GCR15/ AISI52100 |
| Oil hole | NON |
| Bearing clearance | C3 |
| Bearing weight | 0.53kg |
| Inner diameter | 40mm |
| Bearing applicant | automobile and universal |
| Outer diameter | 80mm |
| Thickness | 23 mm |
| Heat treatment method | bainite heat treatment |
| Ball grade | G10 |
