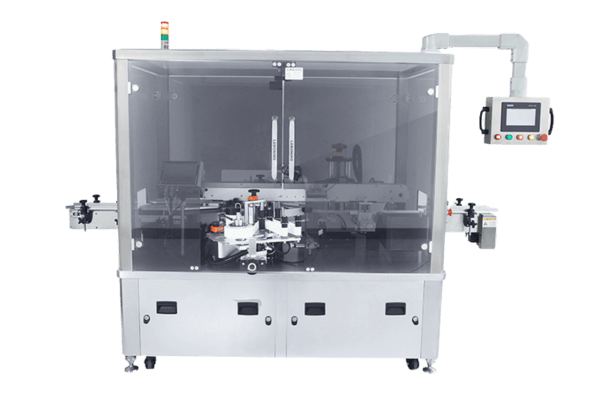

P-260C Labeling Machine
Overview
P-260C Labeling Machine supplied by Vila. Listed under Labeling Machinery. Key published specifications: Applicable box diameter L:50-200mm,W:30-120mm,H:15-100mm; Labeling speed 0-250 boxes /min; Labeling accuracy ±1mm ( except packaging material error ); Power supply 3.5KW, AC220V, 50/60HZ. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Applicable box diameter | L:50-200mm,W:30-120mm,H:15-100mm |
|---|---|
| Labeling speed | 0-250 boxes /min |
| Labeling accuracy | ±1mm ( except packaging material error ) |
| Power supply | 3.5KW, AC220V, 50/60HZ |
| Air consumption | 0.5Mpa,200L /min |
| Machine dimension | 2650*1500*2070mm |
| Total weight (approximately) | Around 300Kg |
| Material of protective cover | Acrylic or tempered glass |
| Maximum label roll outer diameter | Φ300mm |
| Applicable label size | L:15-100mm,W:15-60mm |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
