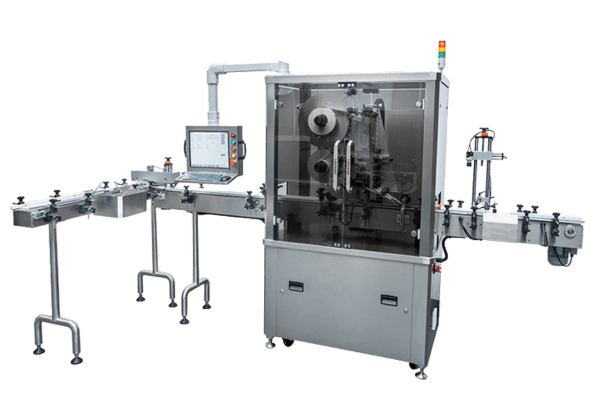

P-120 Labeling Machine
Overview
P-120 Labeling Machine supplied by Vila. Listed under Labeling Machinery. Key published specifications: Applicable product diameter L:30-120mm,W:30-110mm,H:10-50mm; Labeling speed 0-150 plates /min; Labeling accuracy ±1mm ( except packaging material error ); Power supply 3.5KW, AC220V, 50/60HZ. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Applicable product diameter | L:30-120mm,W:30-110mm,H:10-50mm |
|---|---|
| Labeling speed | 0-150 plates /min |
| Labeling accuracy | ±1mm ( except packaging material error ) |
| Power supply | 3.5KW, AC220V, 50/60HZ |
| Air consumption | 0.5Mpa,200L /min |
| Total weight (approximately) | Around 350Kg |
| Maximum label roll outer diameter | Φ400mm |
| Applicable label size | L:15-100mm,W:15-60mm |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
