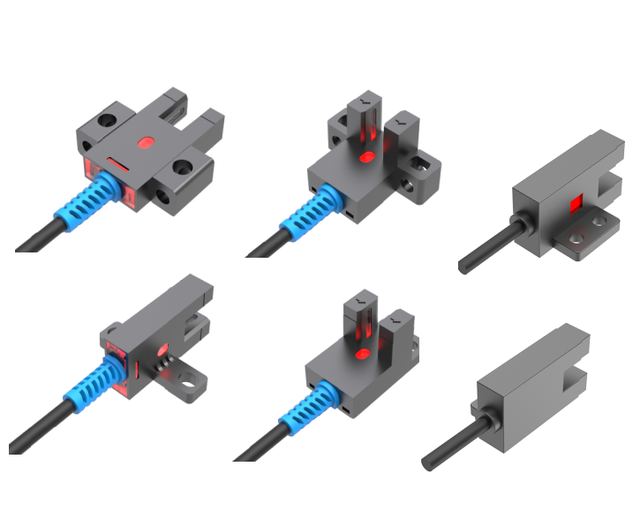

Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor
Model 67 series
Overview
Optical Position Slot Sensors Pre Wired / Connector Type Fork Sensor supplied by Guangdong Boyijingke Sensing Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Document slot type sensor.pdf; Slot Width 5mm; Function detection presence; Output NPN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Document | slot type sensor.pdf |
|---|---|
| Slot Width | 5mm |
| Function | detection presence |
| Output | NPN |
| Detection distance | 5mm slot width |
| Detection object | 1.2x2.0mm opaque object |
| Light source | GaAs infrared LED 940nm |
| response frequency | 2KHz |
| supply power | DC12-24V |
| repeat accuracy | < 0.03mm |
| residue voltage | <3V (load current 100mA, 2m cable ) |
| indicator light | Red LED |
| switch type | selectable L.on/D.on |
| Ambient humidity | opration/storage humidity: 35 ~ 95% RH (no condensation) |
| Ambient illuminance | <1000 lux (Iluminated surface of incandecent lamp) |
| Withstand voltage | AC1,000V50/60hz1min between charging and cover case |
| Anti-virbration | 10~55 Hz,Amplitude 1.5mm,X,Y.Z three directions 2 hours each |
| Impact resistance | 300m/s X,Y,Z three directions 10times each |
| Connection | 2m cable |
| Housing material | PC |
| Power Supply | DC 12~24V |
| Standard Detected Object | 1.2x2.0mm Opaque Object |
| switch capacity | 3-100mA |
| Ambient temperature | opration temperature: -25 ~ +70℃ |
| storage temperature | -40 ~ +80℃ (no freezing, no condensation) |
| opration/storage humidity | 35 ~ 95% RH (no condensation) |
