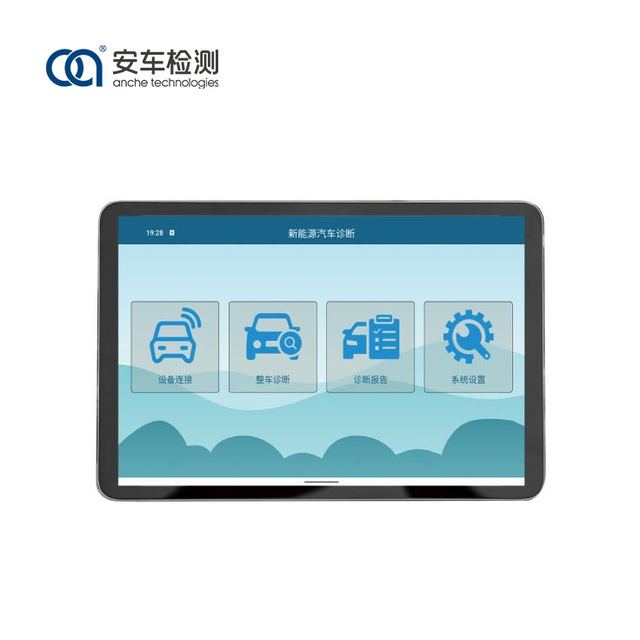

OBD Device
Overview
OBD Device, from Shenzhen Anche Technologies Co., Ltd in Shenzhen, Guangdong. Published figures include dimension 275.5*187.5*22mm, weight 1,000g and camera Front 5.0MP+Rear 130MP.
Technical specifications
| Dimension | 275.5*187.5*22mm |
|---|---|
| Weight | 1,000g |
| Camera | Front 5.0MP+Rear 130MP |
| Power adaptor | AC100V-240V, 50Hz/60Hz, output DC 5V/3A |
| Processor | MTK 8 core, 2.0GHz |
| Operating system | Android 11/GMS + self-developed diagnosis system |
| Memory | 6GB+64GB |
| GNSS | Built-in GPS, Glonass, Beidou (G+G+B) |
| Working temperature | -10°C~50°C |
| Storage temperature | -20°C~60°C |
| Humidity | 95%, non-condensing |
| Protection property | IP65 certified, MIL-STD-810G certified |
| Drop height | 1.22m fall resistant |
