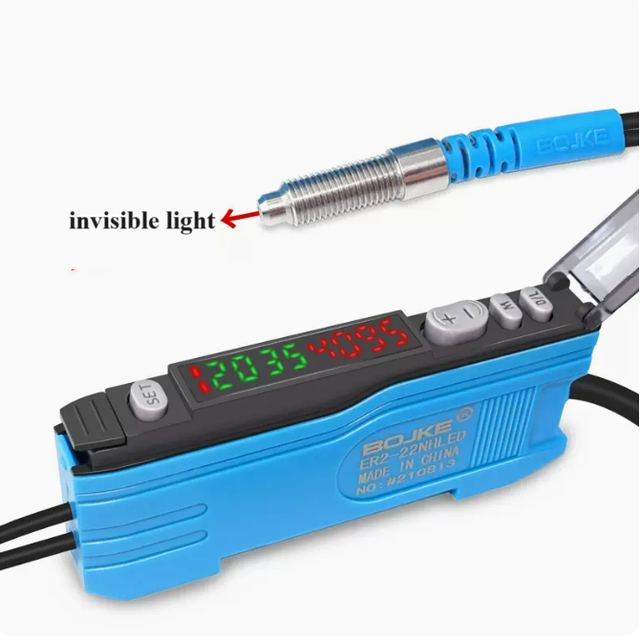

NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector
Model ER2-22NHLED
Overview
NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector supplied by Guangdong Boyijingke Sensing Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Output NPN Or PNP; Light Source Red 4-element LED; Material plastic; Model # ER2-22NHLED. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output | NPN Or PNP |
|---|---|
| Light Source | Red 4-element LED |
| Material | plastic |
| Model # | ER2-22NHLED |
| Operation Voltage | DC12~24V±10% |
| No-load Current | ≤40mA |
| Response Time | P0:<50μs;P1:<200μs;P2:<400μs;P3:<800μs;P4:<4ms |
| Response Frequency | 10KHz |
| Output Mode*1 | NPN open-collectorNPN |
| Max input Current | 100mA |
| Switching Mode | Light.on/Dark.on switchable |
| Ambient Temperature | Operation:10℃~55℃; Storage:25℃~70℃, no freezing |
| Ambient Humidity | Operation:35%~85%RH; Storage:35%~95%RH,No condensation |
| Protection Level | IP64 |
| Connection | 3-core, standard cable length 2 meters |
| Housing Material | ABS |
| Withstand Voltage | AC500V,50/60Hz,1min |
| Impact Resistance | 500m/S², XYZ derection each 10 times |
| Insulation Impedance | Above 20MQ (DC500V megger) |
| Application | Industry equipment |
| Series | fiber laser sensor cable |
| Type | fiber optic componet |
