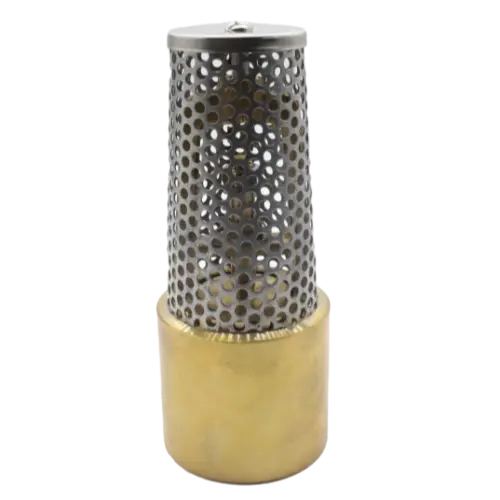

No-Lead Brass Foot Valve
Overview
No-Lead Brass Foot Valve supplied by Vcore Valve co., Ltd. Key published specifications: Body Material Lead-Free Brass Alloy; Filter/Strainer Stainless Steel / Brass Screen; Connection Type BSP / NPT Threaded; Size Range 1/2″–2″ (DN15–DN50). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Body Material | Lead-Free Brass Alloy |
|---|---|
| Filter/Strainer | Stainless Steel / Brass Screen |
| Connection Type | BSP / NPT Threaded |
| Size Range | 1/2″–2″ (DN15–DN50) |
| Working Pressure | Up to ~200 PSI (~12 bar) |
| Temperature Range | -15°C to 115°C |
| Application Medium | Water and Non-Corrosive Fluids |
| Function | One-Way Check Valve with Strainer |
| Installation | Suction/Lift Pump Systems |
| Pressure Rating | PN10 / PN16 |
| Seat & Seal | NBR / EPDM |
| End Connection | Threaded (NPT / BSP) |
| Installation Position | Vertical (Foot-mounted) |
