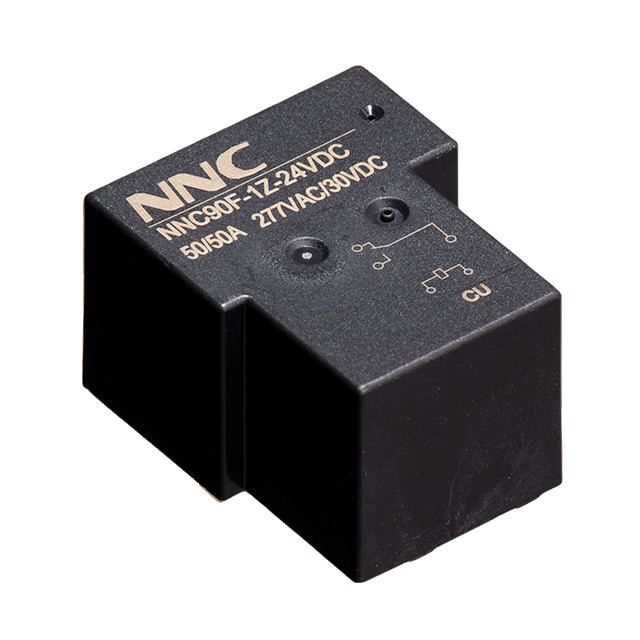

NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit
Model NNC90F
Overview
NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit, listed by CLION ELECTRIC CO.,LTD in Yueqing, Zhejiang. Rated load 60A 277VAC, material Silver Alloy and operate voltage (23℃) DC:≤75%*Rated voltage are among the specifications published.
Technical specifications
| Rated load | 60A 277VAC |
|---|---|
| Material | Silver Alloy |
| Operate voltage (23℃) | DC:≤75%*Rated voltage |
| Release voltage (23℃) | DC:≥10%*Rated voltage |
| Maximum voltage (23℃) | 90-130%*Rated voltage |
| AC | 5-110V |
| Pick-up time | ≤20ms |
| Release time | ≤15ms |
| Between contacts and coil | 2500VAC/1min(leakage current 1mA) |
| Insulation resistance | ≥100mΩ(500VDC) |
| Ambient humidity | 45%-85%RH |
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) |
| Installation | PCB |
| Size | Miniature |
| Contact Load | Low Power |
| Rated Contact Load | 60A |
| Number Of Poles | 1 Pole |
| Operating Temperature | -40°C To 85°C |
| Max Switching Voltage | 277VAC/30VDC |
| Certification | CE, CQC,UL,TUV |
| ③ Coil Power | L:0.9W; Blank:1.5W |
| ④ COil Voltage | Customized |
