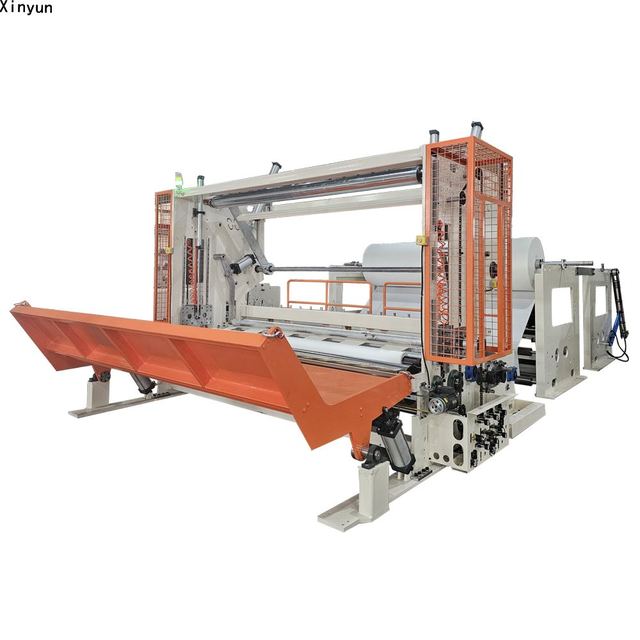

Newest mother jumbo roll paper slitting machine
Overview
Newest mother jumbo roll paper slitting machine supplied by Fujian Xinyun Machinery Development Co.,Ltd. Listed under Papers. Key published specifications: The width of jumbo roll 1800-2800 mm; Jumbo roll inner core diameter 3inches(76.2mm); Slitting diameter 1200 mm; Finish product Inner core diameter 76 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| The width of jumbo roll | 1800-2800 mm |
|---|---|
| Jumbo roll inner core diameter | 3inches(76.2mm) |
| Slitting diameter | 1200 mm |
| Finish product Inner core diameter | 76 mm |
| Slitting Width | Adjustable |
| Speed | 400-500 m/min |
| Base paper core shaft | Air-shaft |
| Rewinding System | Pneumatic timing rewinding |
| Slitting System | Automatic slitting control |
| Discharging Unit | Automatic discharging |
| Edge Cutting Unit | 2.2 KW Vacuum suction edge cutting 2.2 KW |
| Power | Frequency conversion speed regulate 1 5 KW |
| Main Technical Parameters | The width of jumbo roll |
