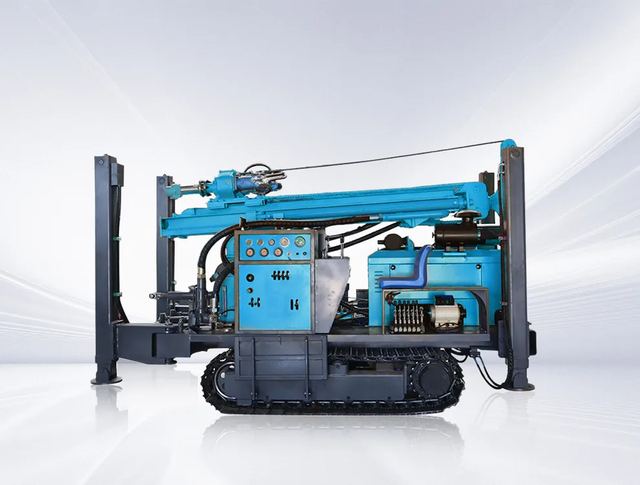

MWX260 Crawler Water Well Drilling Rig
Model MW260I
Overview
MWX260 Crawler Water Well Drilling Rig supplied by D Miningwell. Key published specifications: Weight 5.7T; Drill pipe length 1.5m 2.0m 3.0m; One-time advance length 3.3m; Walking speed 2.5km/h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 5.7T |
|---|---|
| Drill pipe length | 1.5m 2.0m 3.0m |
| One-time advance length | 3.3m |
| Walking speed | 2.5km/h |
| High leg stroke | 1.4m |
| Swing speed | 45-70rpm |
| Rig lifting force | 15T |
| Rapid rise speed | 24m/min |
| Fast feeding speed | 40m/min |
| Width of loading | 2.73m |
| Hoisting force of winch | 1.5T |
| Swing torque | 4500-5300N.m |
| Dimensions | 3900* 1750* 2250mm |
| The penetration efficiency | 10-35m/h |
| The engine brand | Quaichai |
| Engine power | 76kW |
