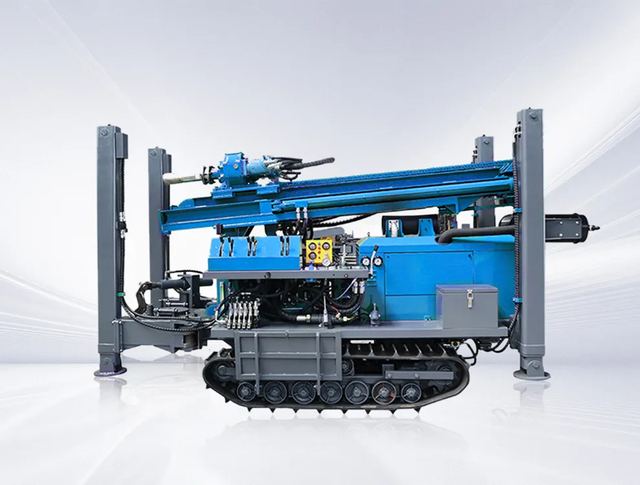

MWX180 Steel Crawler Water Well Drilling Rig
Model MWX180I
Overview
MWX180 Steel Crawler Water Well Drilling Rig supplied by D Miningwell. Key published specifications: Item MWX180I; Weight 4.5T; Drill pipe length 1.5m 2.0m 3.0m; One-time advance length 3.3m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Item | MWX180I |
|---|---|
| Weight | 4.5T |
| Drill pipe length | 1.5m 2.0m 3.0m |
| One-time advance length | 3.3m |
| Walking speed | 2.5km/h |
| High leg stroke | 1.4m |
| Swing speed | 45-70rpm |
| Rig lifting force | 12T |
| Rapid rise speed | 20m/min |
| Fast feeding speed | 40m/min |
| Width of loading | 2.4m |
| Swing torque | 3200-4600N.m |
| Dimensions | 3950* 1630* 2250mm |
| The penetration efficiency | 10-35m/h |
| The engine brand | Quachai |
| Engine power | 55kW |
