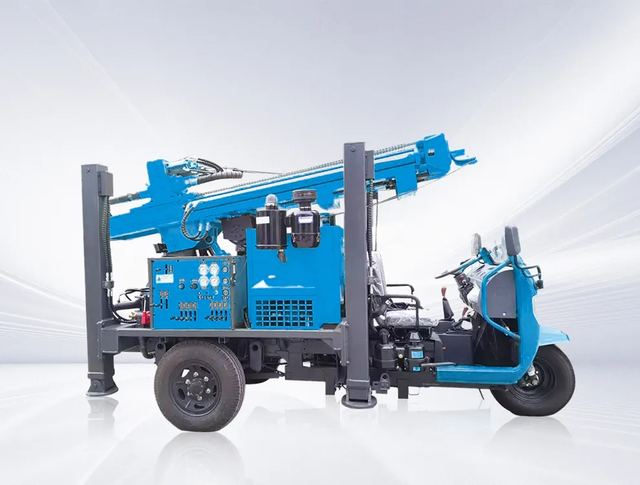

MWL200 200m Vehicle-Mounted Water Well Drilling Rig
Model MWL200I
Overview
MWL200 200m Vehicle-Mounted Water Well Drilling Rig supplied by D Miningwell. Key published specifications: Weight 4.7T; Drill pipe length 1.5m 2.0m 3.0m; One-time advance length 3.3m; Walking speed 20-40km/h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 4.7T |
|---|---|
| Drill pipe length | 1.5m 2.0m 3.0m |
| One-time advance length | 3.3m |
| Walking speed | 20-40km/h |
| Swing speed | 45-65rpm |
| Rig lifting force | 13T |
| Rapid rise speed | 20m/min |
| Fast feeding speed | 40m/min |
| Swing torque | 3400-4700N.m |
| Dimensions | 4350* 1600* 2450mm |
| The penetration efficiency | 10-35m/h |
| The hole diamstar | Φ140-254mm |
| The engine brand | Quanchai |
| Engine power | 65kW |
