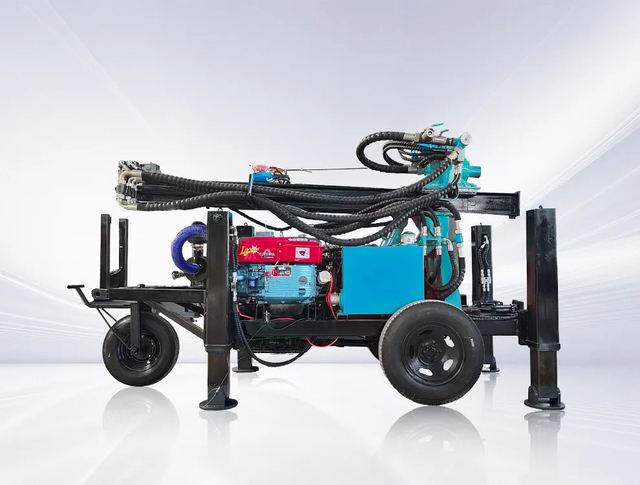

MWL130 130m Wheel Hydraulic Water Well Drilling Rig
Model MW130I
Overview
MWL130 130m Wheel Hydraulic Water Well Drilling Rig supplied by D Miningwell. Key published specifications: Weight 3T; Drill pipe length 1.5m 2.0m; One-time advance length 2.3m; Walking speed 3km/h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 3T |
|---|---|
| Drill pipe length | 1.5m 2.0m |
| One-time advance length | 2.3m |
| Walking speed | 3km/h |
| Swing speed | 40-46rpm |
| Rig lifting force | 6T |
| Rapid rise speed | 15m/min |
| Fast feeding speed | 23m/min |
| Width of loading | 1.56m |
| Swing torque | 2200-3000N.m |
| Dimensions | 3850* 1560* 2050mm |
| The penetration efficiency | 10-35m/h |
| The hole diamstar | Φ140-254mm |
| The engine brand | Changchai |
| Engine power | 23kW |
