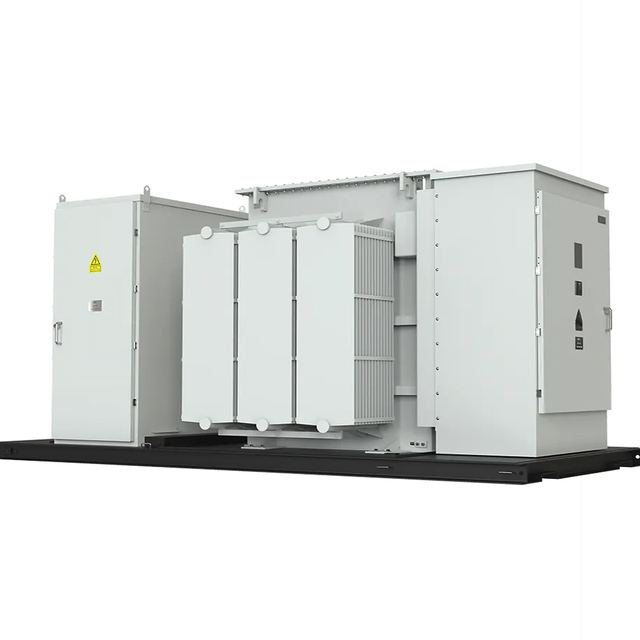

MV Skid Compact
Model KYN28A-12 / KYN28-24 / KYN61-40.5
Overview
MV Skid Compact supplied by ZTELEC Yuguang ElectricTechnology(Henan)CO.,Ltd. Listed under Transformers. Key published specifications: Rated voltage Up to 36kV; Rated capacity 500kVA-6.6 MVA; Model Series YG-SMT Series; Power Rating 500 kVA – 6.6 MVA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated voltage | Up to 36kV |
|---|---|
| Rated capacity | 500kVA-6.6 MVA |
| Model Series | YG-SMT Series |
| Power Rating | 500 kVA – 6.6 MVA |
| Primary Voltage | Up to 36 kV |
| Secondary Voltage | 400 – 600 V |
| Cooling Method | AN / AF / ONAN |
| Insulation Class | F / H |
| Enclosure | Weatherproof, corrosion-resistant |
| Standards | IEC, IEEE, CSA (Optional) |
| Rated Current | 630 – 3150 A |
| Breaking Capacity | 25 – 40 kA |
| Short-Time Withstand | 25–40 kA, 3s |
| Circuit Breaker Type | Vacuum |
| Structure | Metal-clad, Withdrawable |
| Example Models | YG-SMT-500kVA-11/0.4kV |
