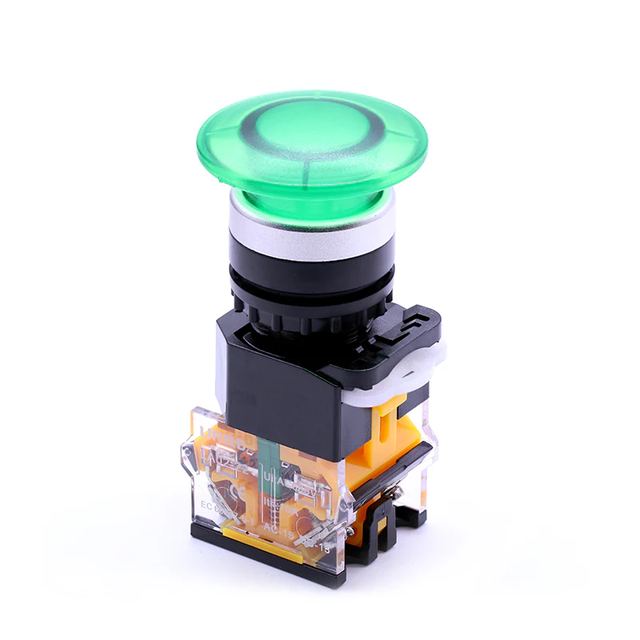

Mushroom NO NC Push Button Switch
Overview
Mushroom NO NC Push Button Switch, listed by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. Humidity 45~85%RH(No Condensation), contacts material Silver Alloy and dielectric strength 3000V, Alternating Current 50Hz are among the specifications published.
Technical specifications
| Humidity | 45~85%RH(No Condensation) |
|---|---|
| Contacts Material | Silver Alloy |
| Dielectric Strength | 3000V, Alternating Current 50Hz |
| Vibration Resistance | 50Hz, Amplitude 1.0mmp-p |
| Shock Resisitance | ≥10g |
| Electrical | ≥50,000 Times |
| Terminal | Thread connection, diameter of welded wire: 2*1.5mm Max |
| Operating Force | 800gf~2200gf |
| Operating Distance | A, B, C Type: About 5.5mm(button) |
| Momentary Type | ≥1,000,000 times |
| Selector Type | ≥500,000 times |
| Key-lock Type, Emergency Type | ≥200,000 times |
| Thread connection, diameter of welded wire | 2*1.5mm Max |
| A, B, C Type | About 5.5mm(button) |
| K Type | about 3.8mm(button) |
