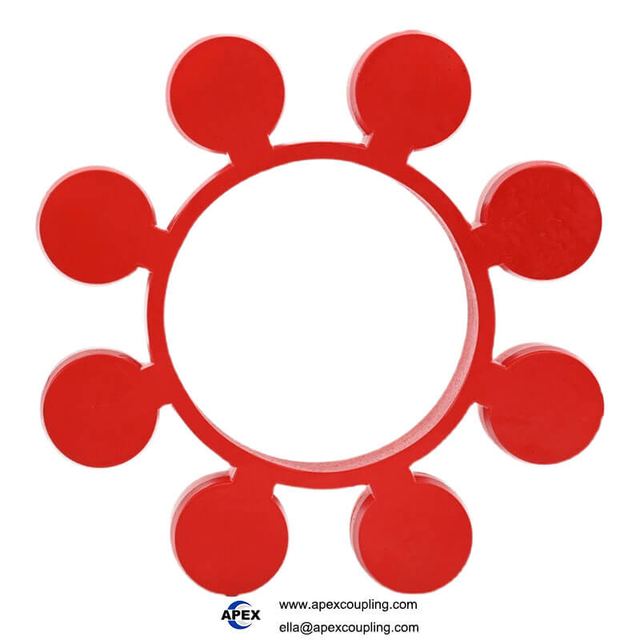

MT Series Polyurethane Spider Insert
Overview
MT Series Polyurethane Spider Insert supplied by Universal joint. Key published specifications: Model Series MT Series (MT1 – MT13); Hardness 90–98 Shore A (95A ±5 standard); Torque Range 22.4 – 2500 N·m; Operating Temperature -40°C to +100°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model Series | MT Series (MT1 – MT13) |
|---|---|
| Hardness | 90–98 Shore A (95A ±5 standard) |
| Torque Range | 22.4 – 2500 N·m |
| Operating Temperature | -40°C to +100°C |
| Abrasion Resistance | <0.05 cm³ / 1.61 km |
| Customized support | OEM, ODM, OBM |
| Wear-Resistant | Abrasion <0.05 cm³/1.61 km – long service life |
| Wide Temperature Range | -40°C to +100°C – suitable for extreme environments |
