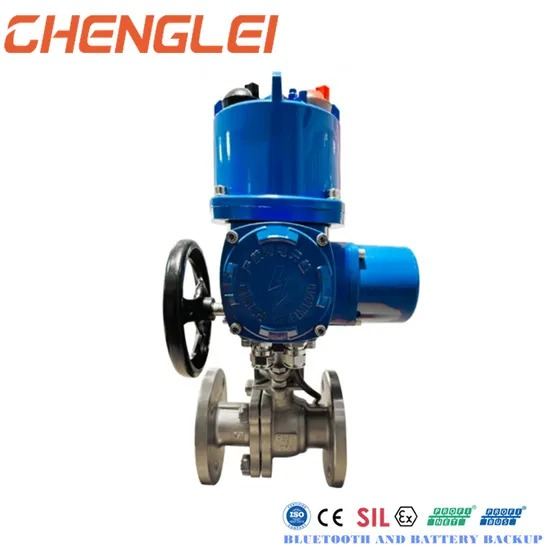

Motor Driven Telescoping Adjustable Electric Rotary Actuator for Valve and Damper

Motor Driven Telescoping Adjustable Electric Rotary Actuator for Valve and Damper

Overview

Motor Driven Telescoping Adjustable Electric Rotary Actuator for Valve and Damper supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Connection Flange; Material Aluminum Alloy; Thermal Protection Yes; Bluetooth Connection Yes. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

ConnectionFlange
MaterialAluminum Alloy
Thermal ProtectionYes
Bluetooth ConnectionYes
Voltage380V/110V/220V/440V/660V AC Or 12V/24V DC
Rated Frequency50HZ/60HZ
Speed9r/min,18r/min,24r/min,36r/min/48r/min
Control MethodOn-off Or Modulating.4-20mA
Motor DutyS2 10min,15min,30min Or S1/S3/S4/S6 24%,40%
Protection GradeIP65/IP67/IP68
Speed options9r/min, 18r/min, 24r/min, 36r/min, 48r/min
Control methodsOn-off or modulating (4-20mA)
Insulation levelF level
CertificationsCCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost
Environmental temperature-20°C to +60°C (special orders -60°C to +70°C)
Relative humidity≤ 95% (at +25°C)
Anti-corrosion coatingElectrostatic powder spraying
Body materialAluminum alloy/stainless steel/carbon steel
