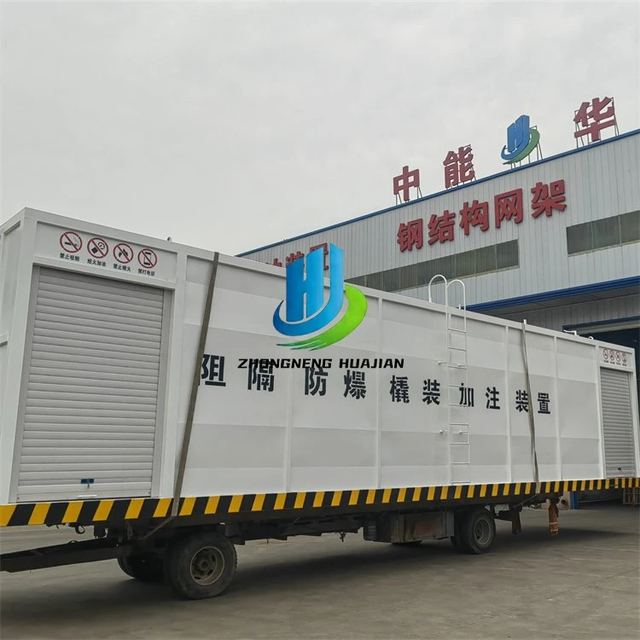

Mobile Fuel Station
Overview
Mobile Fuel Station supplied by Zhongneng Huajian (Shandong) Metal Structure Co., Ltd. Listed under Storage Tanks. Key published specifications: With 2900mm; Height 3200mm; Rated capacity 5-50m³; Weight (unfilled) 2600-24200kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| With | 2900mm |
|---|---|
| Height | 3200mm |
| Rated capacity | 5-50m³ |
| Weight (unfilled) | 2600-24200kg |
| Temperature range | -20℃ to 40℃ |
| Manhole diameter | 580mm |
| Emergency pressure relief | 21-35kPa |
| Breathing valve | DN50-295Pa~2000Pa |
| Barrier and anti-explosion material | IV type |
| Working voltage | Three-phase five-wire 380V |
| Max. power (per skid-mounted station) | 8kW or 14kW |
