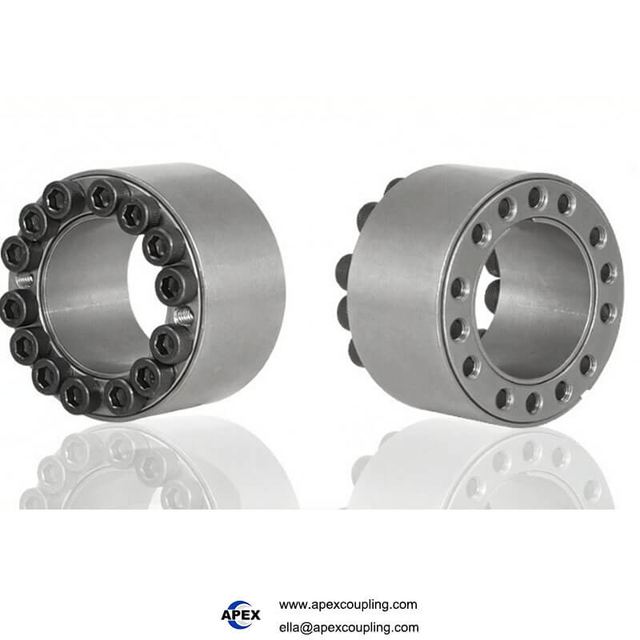

MLAT High Torque Shrink Disc
Overview
MLAT High Torque Shrink Disc supplied by Universal joint. Key published specifications: Material S45C forged steel (equivalent to 45# steel); Bore Diameter Range (d) 30 – 65 mm; Outer Diameter Range (D) 55 – 95 mm; Max Torque Capacity Up to 6400 N·m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | S45C forged steel (equivalent to 45# steel) |
|---|---|
| Bore Diameter Range (d) | 30 – 65 mm |
| Outer Diameter Range (D) | 55 – 95 mm |
| Max Torque Capacity | Up to 6400 N·m |
| Max Axial Load | Up to 197 kN |
| Screw Grade | 12.9 high-strength |
| Backlash | Zero – friction-lock connection |
| Reusability | Yes – multiple installation cycles |
| Standard | JB/T 7934-1999 |
| Interchangeable With | Misumi MLAT series |
| Customized support | OEM |
