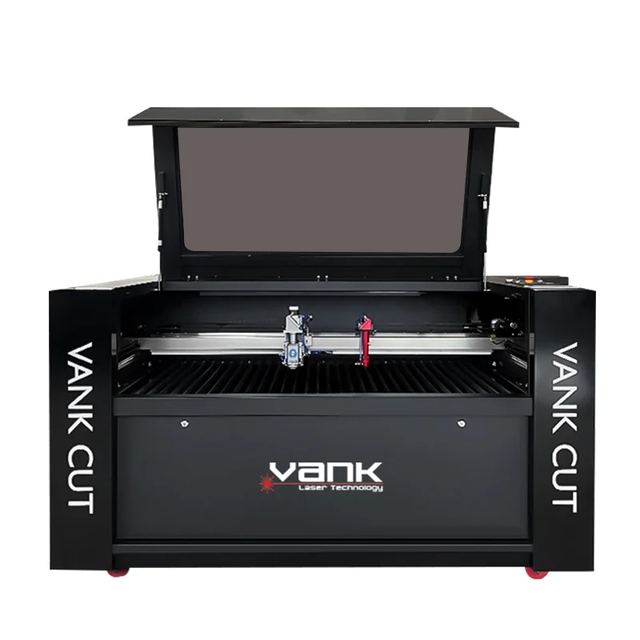

Mixed CO2 Laser Engraving Cutting Machine 2 heads
Overview
Mixed CO2 Laser Engraving Cutting Machine 2 heads supplied by Vank. Key published specifications: Model VankCut-1390/ VankCut-1610/VankCut-1325; Laser Power 150W 180W 200W 300W 500W; Working Area 1300*900mm/1600*1000mm/1300*2500mm; Cooling Type Water Cooling. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | VankCut-1390/ VankCut-1610/VankCut-1325 |
|---|---|
| Laser Power | 150W 180W 200W 300W 500W |
| Working Area | 1300*900mm/1600*1000mm/1300*2500mm |
| Cooling Type | Water Cooling |
| Max Engraving Speed | 600mm/s |
| Max Cutting speed | 200mm/s |
| Metal cutting thickness | 0.1-2.5mm |
| Min.Engraving Size | Chinese:2*2mm, English Letter:1*1mm |
| Highest Scanning Precision | 4000DPI |
| Locating Accuracy | ≤0.01mm |
| Control panel | RD6332M |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST/PLT/BMP/DWG/DXF/AI/HPGL… |
| Color Separation | Yes |
| Working Environment | Temperature:0-45C, Humidity5-95%(No Condensate Water) |
| Materials/Thickness | Speed |
| Oxygen（MPa） | Air gas（MPa） |
| Acrylic/15mm | 0.4-0.5m/min |
| Acrylic/25mm | 0.1-0.2 m/min |
| Acrylic/30mm | 0.06-0.1m/min |
| galvanized sheet/1mm | 4-4.5m/min |
| galvanized sheet/1.5mm | 2.5-3m/min |
| Die board/18mm | 0.4-0.5m/min |
| polystyrene/1mm | 10-10.5m/min |
| polystyrene/1.5mm | 6.5-7m/min |
| epoxy resin/2mm | 0.5-0.8m/min |
| epoxy resin/3mm | 0.3m-0.5m/min |
| Temperature | 0-45C, Humidity5-95%(No Condensate Water) |
