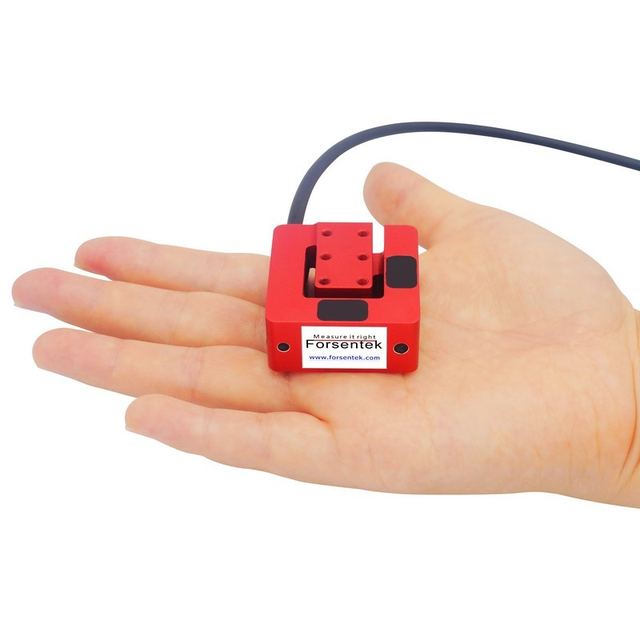

Miniature Multi-Axis Load Cell Force Sensor 50N 100N 200N 500N 1kN
Model F3N
Overview
Miniature Multi-Axis Load Cell Force Sensor 50N 100N 200N 500N 1kN supplied by Forsentek Co. Limited. Key published specifications: Type 3-axis Load Cell; Force Range 50/100/200/500/1000N; Load Direction Fx/Fy/Fz; Sensitivity 1.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | 3-axis Load Cell |
|---|---|
| Force Range | 50/100/200/500/1000N |
| Load Direction | Fx/Fy/Fz |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of the capacity |
| Hysteresis | ±0.3% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(5min) | ±0.1% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -10...+60 o C |
| Temperature shift on zero | ±0.03% R.O./ o C |
| Temperature shift on span | ±0.02% R.O./ o C |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy or Stainless steel |
| Wiring code | 4-wire connection for each axis |
| Output | Analog Transducer |
