Overview

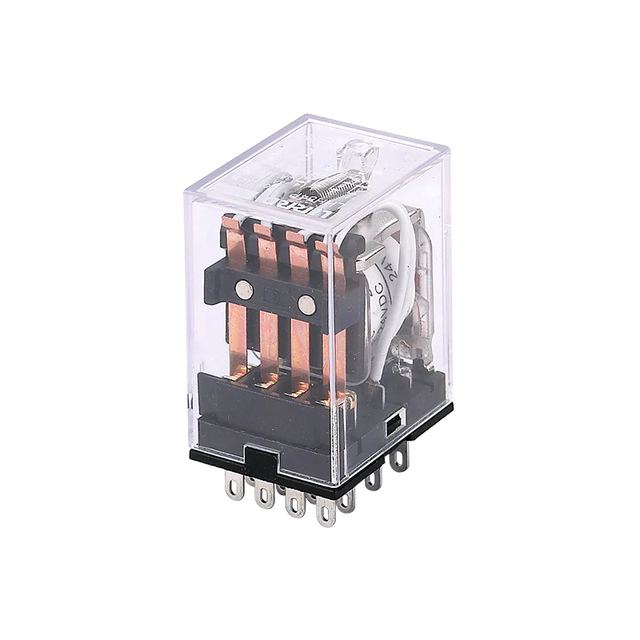

Miniature Electromagnetic Relay LHH54P supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Contact Material Silver Alloy; Resistance Performance Of Contactor Capacity LHH52P/53P: 5A/28VDC, 5A/240VAC LHH54P: 3A/28VDC, 3A/240VAC; Ac(Va) ≤1.2VA; Ac(V) 6~380V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Contact Material	Silver Alloy
Resistance Performance Of Contactor Capacity	LHH52P/53P: 5A/28VDC, 5A/240VAC LHH54P: 3A/28VDC, 3A/240VAC
Ac(Va)	≤1.2VA
Ac(V)	6~380V
Pick-up Voltage at 23°C	DC≤75% AC≤80%
Drop-out Voltage at 23°C	DC≥10% AC≥30%
Contacts Pieces	≥1000VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts	≥1500VAC 50Hz/1min Leakage Current 1mA
Mechanical	1,000,000 Times(Frequency:300 Times/1min)
Ambient Temperature	-25°C ~ +55°C
Terminal Type	Insert Type, Welding Type
Product Weight	30g
100,000 Times(Frequency	On 1 Time/1S,Off 1 Time/1S)
1,000,000 Times(Frequency	300 Times/1min)
