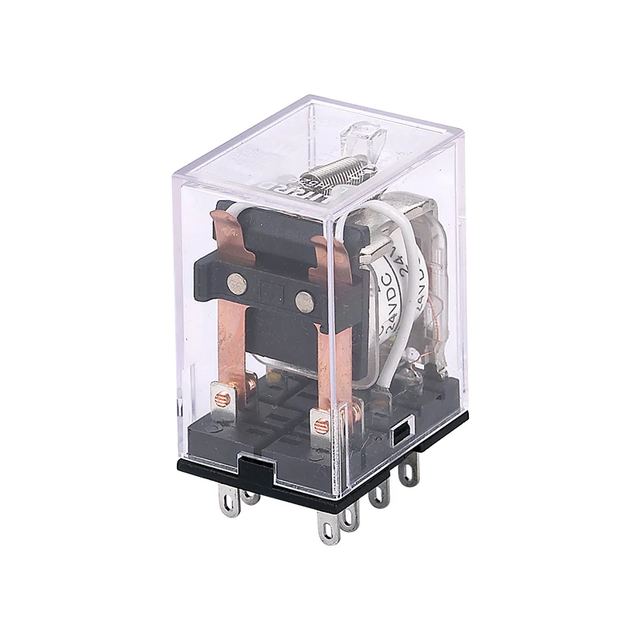

Miniature Electromagnetic Relay LHH52P

Miniature Electromagnetic Relay LHH52P

Overview

Miniature Electromagnetic Relay LHH52P, listed by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. The listing gives contact material Silver Alloy, ac(va) ≤1.2VA and ac(v) 6~380V.

Technical specifications

Contact MaterialSilver Alloy
Resistance Performance Of Contactor CapacityLHH52P/53P: 5A/28VDC, 5A/240VAC LHH54P: 3A/28VDC, 3A/240VAC
Ac(Va)≤1.2VA
Ac(V)6~380V
Pick-up Voltage at 23°CDC≤75% AC≤80%
Drop-out Voltage at 23°CDC≥10% AC≥30%
Contacts Pieces≥1000VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts≥1500VAC 50Hz/1min Leakage Current 1mA
Mechanical1,000,000 Times(Frequency:300 Times/1min)
Ambient Temperature-25°C ~ +55°C
Terminal TypeInsert Type, Welding Type
Product Weight30g
100,000 Times(FrequencyOn 1 Time/1S,Off 1 Time/1S)
1,000,000 Times(Frequency300 Times/1min)
