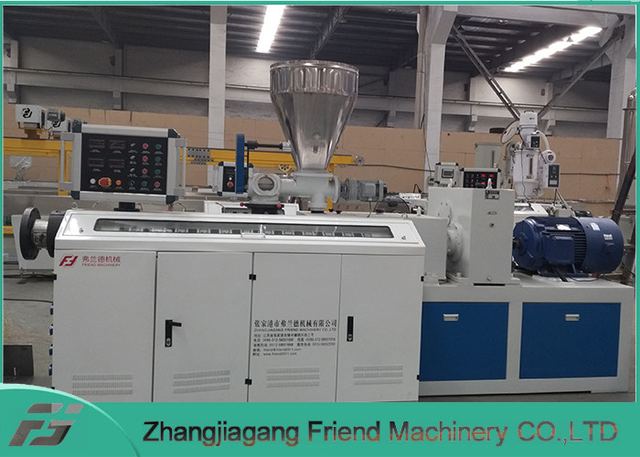

Mini SJ25 SJ45 Plastic Extruder Machine For Making PP PE Pipe
Model SJ20
Overview
Mini SJ25 SJ45 Plastic Extruder Machine For Making PP PE Pipe supplied by Zhangjiagang Friend Machinery Co.,lTD. Listed under Extruders. Key published specifications: Screw Diameter 25 mm; Screw Material 38CrMoAlA; Hardness of Screw HV900-1000; Depth of Nitrogen Treatment 0.4-0.7 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Screw Diameter | 25 mm |
|---|---|
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Depth of Nitrogen Treatment | 0.4-0.7 mm |
| Screw Straightness | ＜0.015 mm |
| Main Motor Power | 2.2KW |
| Heating Method | Ceramic Heater |
| Heating Zones | 3 Periods(Screw Barrel 2periods,Head Piece 1 Periods) |
| Heating Power | 1.5KW*3=4.5KW |
| Cooling Method | Forced Air Cooling |
| Fan Motor Power | 60W*2=0.12KW |
| Screw Maximum Rotating Speed | 40 rpm |
| Maximum Capacity | 1-3Kg/h |
| Main Motor | AC Motor |
| Screw and Barrel | Jinjiu Screw |
| PLC control | yes |
| Certification | CE,SGS,UV |
| Application | Lab Plastic Extrusion |
| Capacity | 1-3kg/h |
| Heater Type | Ceramic Type |
| Control System | PLC |
| Controller | Normal, PID or PLC (optional) |
| 2, Main Technical Standards | Model No. SJ25 |
