Overview

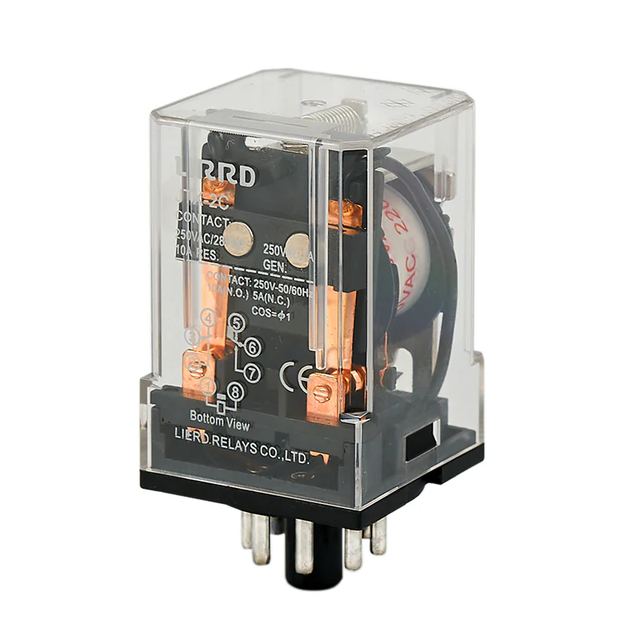

Mini Electromagnetic Relay LJTX-2C supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Contact Material Silver Alloy; Resistance Performance Of Contactor Capacity 5A/28VDC, 5A/250VAC; Ac(Va) ≤3.5VA; Ac(V) 6~380V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Contact Material	Silver Alloy
Resistance Performance Of Contactor Capacity	5A/28VDC, 5A/250VAC
Ac(Va)	≤3.5VA
Ac(V)	6~380V
Pick-up Voltage at 23°C	DC≤75% AC≤80%
Drop-out Voltage at 23°C	DC≥10% AC≥30%
Contacts Pieces	≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts	≥1500VAC 50Hz/1min Leakage Current 1mA
Mechanical	10 6 Times(Frequency:300 Times/1min)
Ambient Temperature	-25°C ~ +55°C
Terminal Type	Insert Type
Product Weight	76g
10 5 Times(Frequency	On 1 Time/1S,Off 1 Time/1S)
10 6 Times(Frequency	300 Times/1min)
